GJL1313911R1016 ABBVBC7A-30-01-16

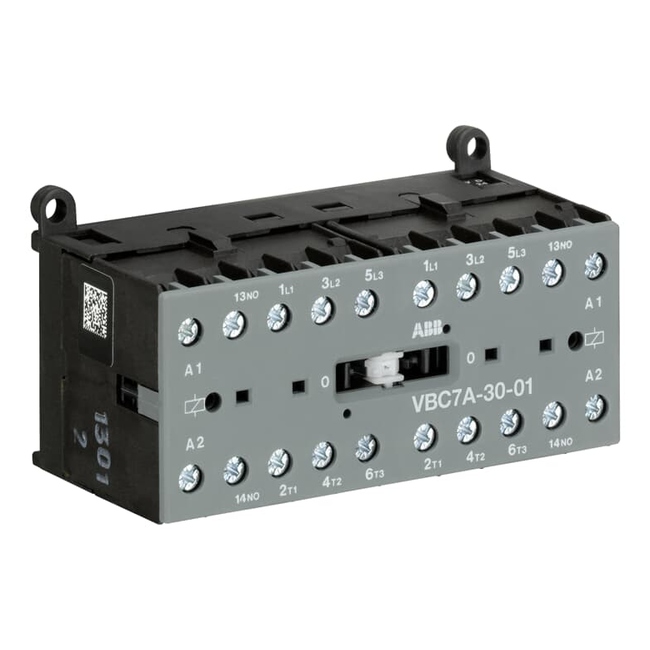

The VBC7A-30-01 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and mechanical interlock and safety blocking. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 5.5 kW (AC-3). Further features are the noiseless and hum-free coil, a a switch position indication and the integrated possibility for rail or wall mounting.

EAN
4013614192340
Catalog Description
VBC7A-30-01-16 Mini Rev.Contactor 48VDC
Customs Tariff Number
85365080
Weight
0.355 kg
Dimensions
(WxHxD/L) 96.5 mm x 57.5 mm x 46.5 mm
