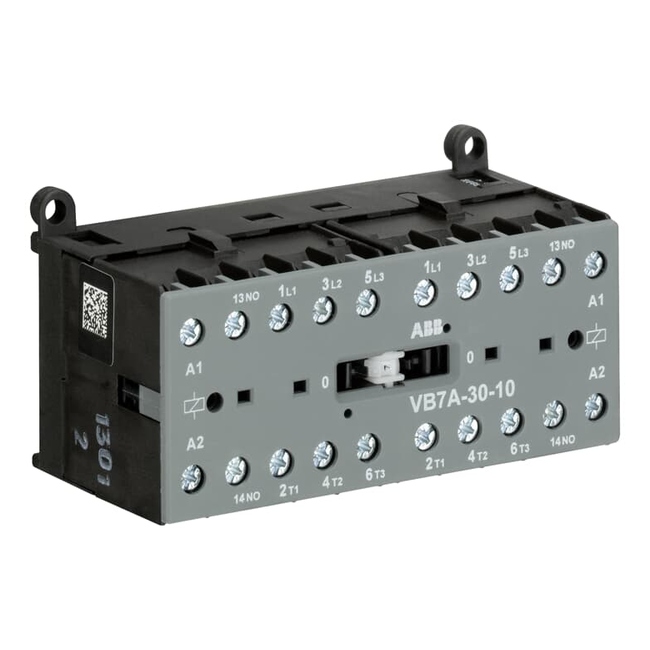

GJL1311911R0101 ABB ⍾ VB7A-30-10-01
The VB7A-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and mechanical interlock and safety blocking. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 5.5 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
- Type
- Mini Contactors
- Catalog description
- VB7A-30-10-01 Mini Rev.Contactor 24V 40-450Hz
- Customs tariff number
- 85365080
- Weight
- 0.355 kg
- Dimensions
- (WxHxD/L) 96.5 mm x 57.5 mm x 46.5 mm
- EAN
- 4013614157462
