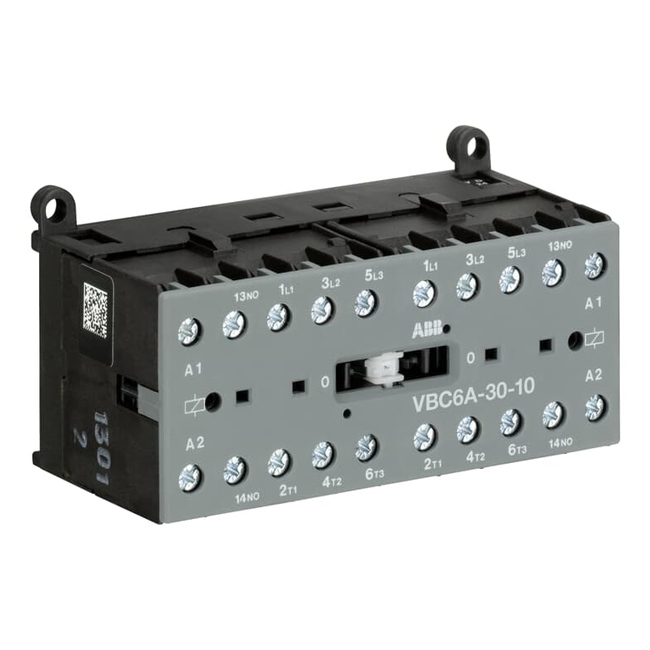

GJL1213911R8101 ABB ⍾ VBC6A-30-10-1.4-81

The VBC6A-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and mechanical interlock and safety blocking. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, a a switch position indication and the integrated possibility for rail or wall mounting.

Type

Mini Contactors

Catalog description

VBC6A-30-10-1.4-81 Mini Rev.Contactor 24VDC, 1.4W

Customs tariff number

85365080

Weight

0.355 kg

Dimensions

(WxHxD/L) 96.5 mm x 57.5 mm x 46.5 mm

EAN

4013614053863
