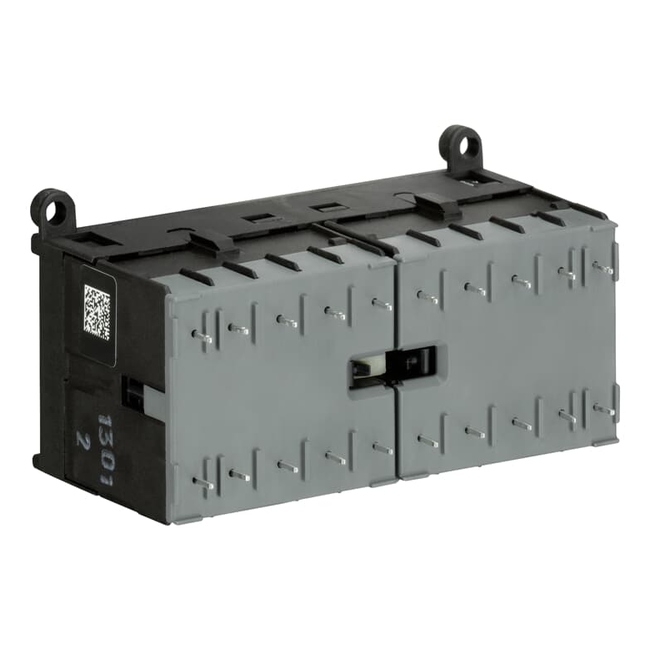

GJL1211909R8000 ABB ⍾ VB6-40-00-P-80
The VB6-40-00-P mini reversing contactor is a compact 4 pole contactor with soldering pins and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail mounting.
- Type
- Mini Contactors
- Catalog description
- VB6-40-00-P-80 Mini Rev.Contactor 220-240V 40-450Hz
- Customs tariff number
- 85365080
- Weight
- 0.345 kg
- Dimensions
- (WxHxD/L) 96.5 mm x 57.5 mm x 51.5 mm
- EAN
- 4013614196256
