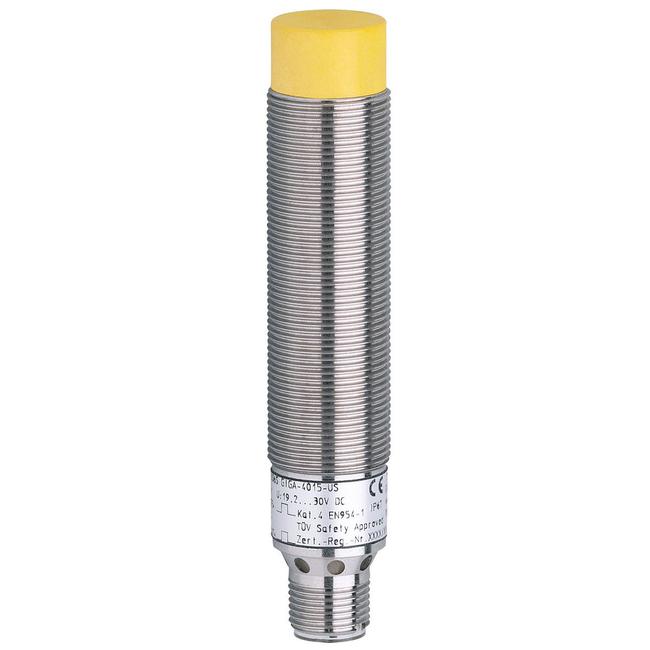

GG505S ifm ⍾ GIGA-4015-US /V4A

Fail-safe inductive sensor; Operating voltage [V] : 19.2...30 DC; Protection class : III; Reverse polarity protection : yes; Max. power-on delay time [ms] : 5000; Max. input capacitance Ci_max [nF] : 2; Output function : clock signal; Output data : Interface type B; Short-circuit protection : yes; Max. capacitive load CL_max [nF] : 20; Enable zone [mm] : 3...6; Safe switching-off distance s(ar) [mm] : 15; Response time to safety request [ms] : 20; Response time when approaching the enable zone [ms] : 200; (typical 100); Applications : class C to EN 60654-1 weatherproof application; Ambient temperature [°C] : -25...70; Note on ambient temperature : operational life ≤ 87600 h; Ambient temperature [°C] : 10...40; Note on ambient temperature : operational life ≤ 175200 h; Rate of temperature change [K/min] : 0.5; Max. relative air humidity [%] : briefly: 5...95 %; permanent: 5...70 %; Air pressure [kPa] : 80...106; Ionising radiation : not permissible; Salt spray : no; ISO 13849-1 : category 3, PL e; IEC 61508 : SIL 3; Mission time TM [h] : ≤ 175200; Mission time TM (additional indication) : 20 years; Safety-related reliability PFHD [1/h] : 1E-08; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M18 x 1; Materials : stainless steel; PBT; Items supplied : lock nuts: 2

Type

Inductive sensors
