EVC711 ifmADOAH040MSP0002H04

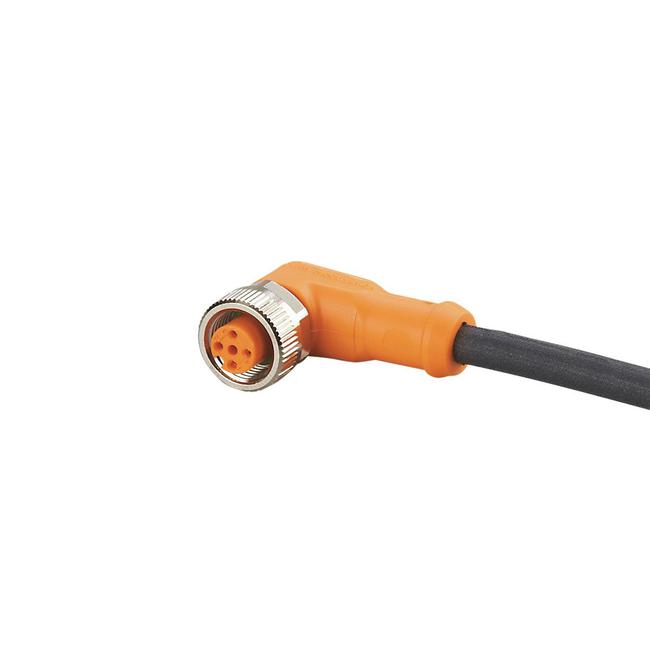

Connecting cable with socket; Operating voltage [V] : < 250 AC / < 300 DC; Protection class : II; Max. current load total [A] : 4; Ambient temperature [°C] : -25...90; Ambient temperature (moving) [°C] : -25...90; Storage temperature [°C] : -25...55; Storage humidity [%] : 10...100; Other climatic conditions for storage according to stated class : 1K22/ DIN 60721-3-1; Materials : housing: TPU orange; Sealing: FKM; Material nut : brass, nickel-plated; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 5 Mio. | torsional strain: ± 180 °/m; Cable: 2 m, PUR, Halogen-free, black, Ø 6.2 mm; 4 x 1.00 mm² (32 x Ø 0.2 mm )

Connection
Connector: 1 x M12, angled; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
No. of inputs/outputs
Number of analogue outputs: 1
Current consumption
< 60 mA
Voltage supply
24 V
Display
switching status: 2 x LED, yellow | operation: 2 x LED, green
Degree of protection
IP 65; IP 67; IP 68; IP 69K
Weight
152.3 g
Dimensions
31.5 x 15.5 x 38 mm
