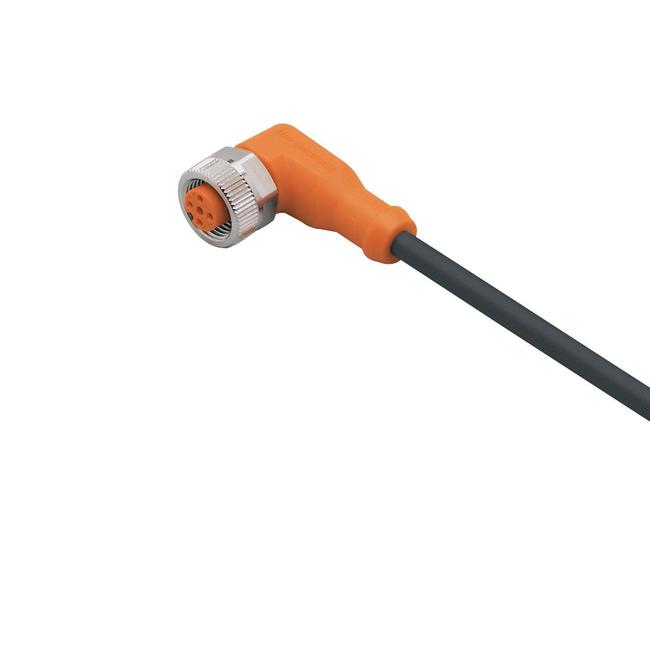

EVC683 ifm ⍾ ADOAH050MSA0010H05

Connecting cable with socket; Operating voltage [V] : 32 DC; (wires 4+5: 5 V); Protection class : II; Max. current load total [A] : 4; (wires 4+5: 0,05); Ambient temperature [°C] : -25...90; Ambient temperature (moving) [°C] : -25...90; Materials : housing: TPU black; Sealing: FKM; Material nut : brass, nickel-plated; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 5 Mio. | torsional strain: ± 180 °/m; Cable: 10 m, PUR, Halogen-free, black, Ø 4.9 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )

Type

Connection cables with socket

Connection

Connector: 1 x M12, angled; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 60 mA

Voltage supply

24 V

Display

switching status: 2 x LED, yellow | operation: 2 x LED, green

Degree of protection

IP 65; IP 67; IP 68; IP 69K

Weight

360.3 g

Dimensions

26.5 x 15.5 x 36.5 mm
