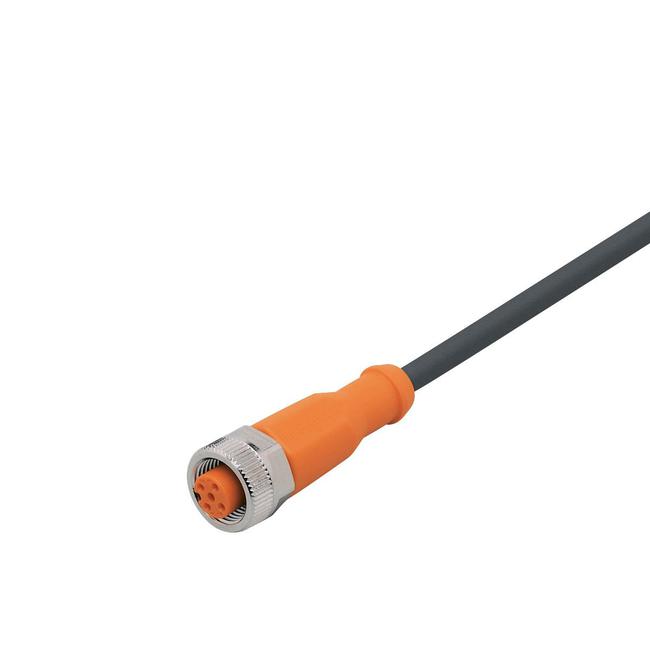

EVC546 ifm ⍾ ADOGH050MSS0010K05

Connecting cable with socket; Operating voltage [V] : < 30 AC / < 36 DC; Protection class : III; Max. current load total [A] : 4; Overall current rating (UL) [A] : 3; Ambient temperature [°C] : -25...90; Note on ambient temperature : cULus: ...75; Ambient temperature (moving) [°C] : -25...90; Note on ambient temperature (moving) : cULus: ...75; Materials : housing: TPU orange; Sealing: FKM; Material nut : brass, nickel-plated; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: ≥ 2 Mio. | torsional strain: ± 180 °/m; Cable: 10 m, PUR, Halogen-free, black, Ø 4.9 mm, shielded; 5 x 0.25 mm² (32 x Ø 0.1 mm )

Type

Connection cables with socket

Connection

Connector: 1 x M12, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Shielded connection cable: screen connected

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 60 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 65; IP 67

Weight

403 g

Dimensions

15.5 x 15.5 x 45 mm
