EVC038 ifm ⍾ VDOAH043MSS0002H04STAH040MSS

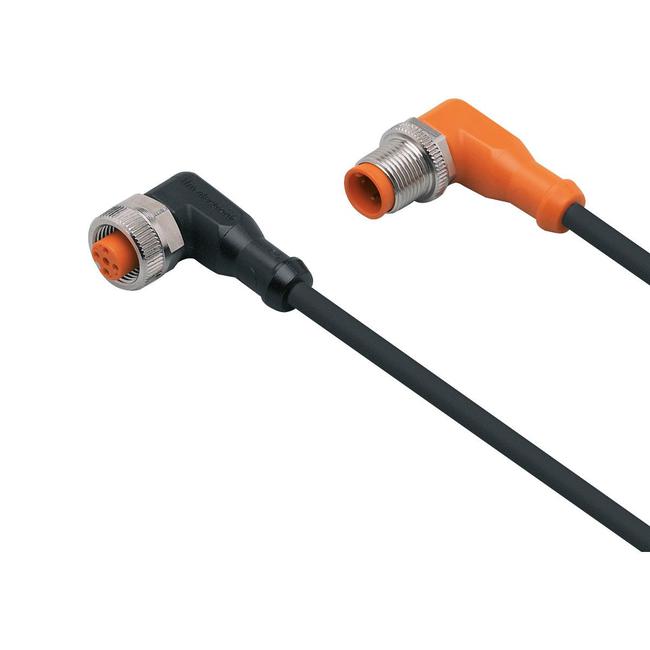

Connection cable; Operating voltage [V] : 10...36 DC; Protection class : II; Max. current load total [A] : 4; Electrical design : PNP; Ambient temperature [°C] : -25...90; Note on ambient temperature : cULus: ...75; Ambient temperature (moving) [°C] : -25...90; Note on ambient temperature (moving) : cULus: ...75; Moulded-body material : TPU; Material nut : brass, nickel-plated; Sealing material : FKM; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 5 Mio. | torsional strain: ± 180 °/m; Connector: 1 x M12, angled; Moulded body: TPU, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Connector: 1 x M12, angled; Moulded body: TPU, black transparent; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
- Connection
- Cable: 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
- No. of inputs/outputs
- Number of analogue outputs: 1
- Current consumption
- < 60 mA
- Voltage supply
- 24 V
- Display
- switching status: 2 x LED, yellow | operation: 1 x LED, green
- Degree of protection
- IP 65; IP 67; IP 68; IP 69K
- Weight
- 91.4 g
- Dimensions
- 30.5 x 15.5 x 36.5 mm
