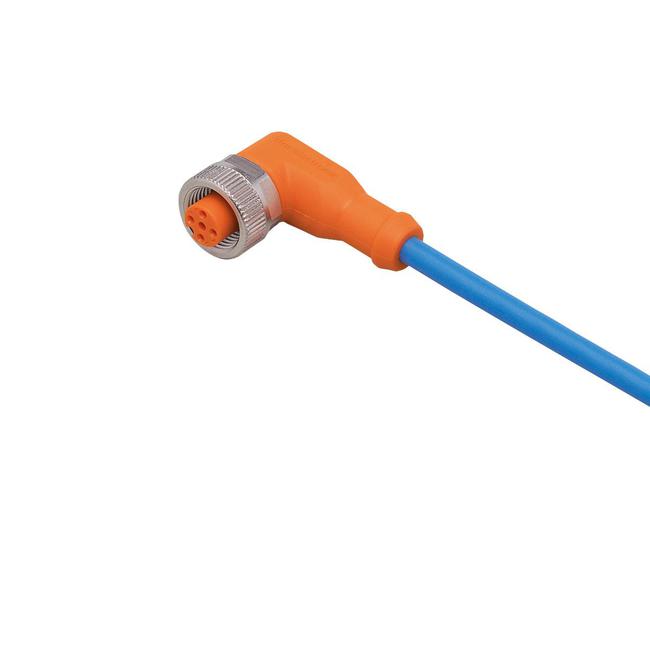

ENC05A ifm ⍾ ADOAH040MSN0005H04/1G/1D

Connecting cable with socket; Operating voltage [V] : < 30 DC; Protection class : II; Max. input power [mW] : group II: 1000; group IIIB: 1000; group IIIC: 550 (Ta < 90 °C) / 650 (Ta < 70 °C) / 750 (Ta < 40 °C); Max. current load total [A] : 1; Ambient temperature [°C] : -25...90; Note on ambient temperature : for use in hazardous areas: ambient temperature in accordance with unit marking; Max. internal capacitance [nF] : 0.5; Max. internal inductance [µH] : 10; Materials : housing: TPU orange; Sealing: FKM; Material nut : brass, nickel-plated; Cable: 5 m, PUR, Halogen-free, blue, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Type

Use in hazardous areas

Connection

Connector: 1 x M12, angled; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 60 mA

Voltage supply

24 V

Display

switching status: 10 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 67; (when used outside the hazardous area: IP 68 / IP 69K)

Weight

196.8 g

Dimensions

26.5 x 15.5 x 36.5 mm
