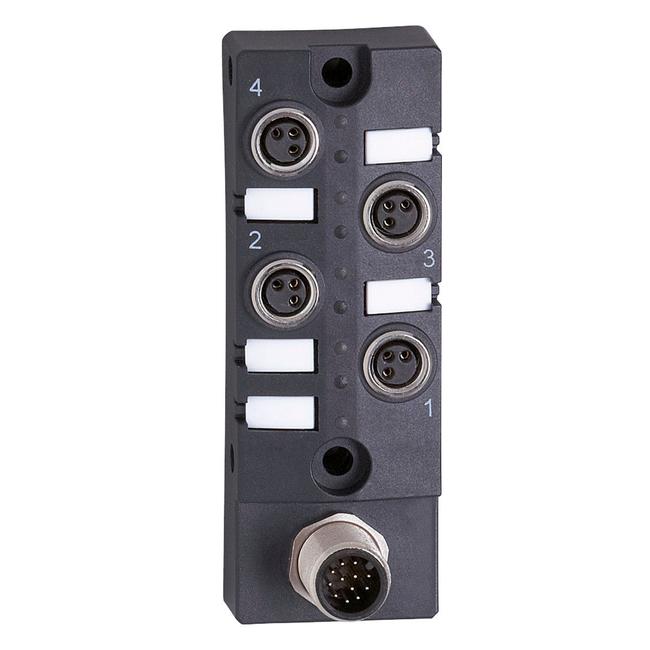

EBC044 ifm ⍾ ZDO4F035MSS0000-STGH120MSS

Splitter box; Operating voltage [V] : 15...30 DC; Protection class : III; Max. current load per module/slot [A] : 1; Max. current load total [A] : 1; Electrical design : PNP; Ambient temperature [°C] : -25...80; Ambient temperature (moving) [°C] : -5...60; Materials : PBT-GF20; brass nickel-plated; Moulded-body material : PBT-GF 20 / brass, nickel-plated; Number of ports splitter box : 4; Connector type : M8; Connector: 4 x M8; Moulded body: PBT-GF 20 / brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

Type

splitter boxes

Connection

Connector: 1 x M12; Moulded body: PBT-GF 20 / brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

No. of inputs/outputs

Number of analogue inputs: 1

Current consumption

< 60 mA

Voltage supply

24 V

Display

switching status: 4 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 67

Weight

86.8 g

Dimensions

17 x 30 x 85.4 mm
