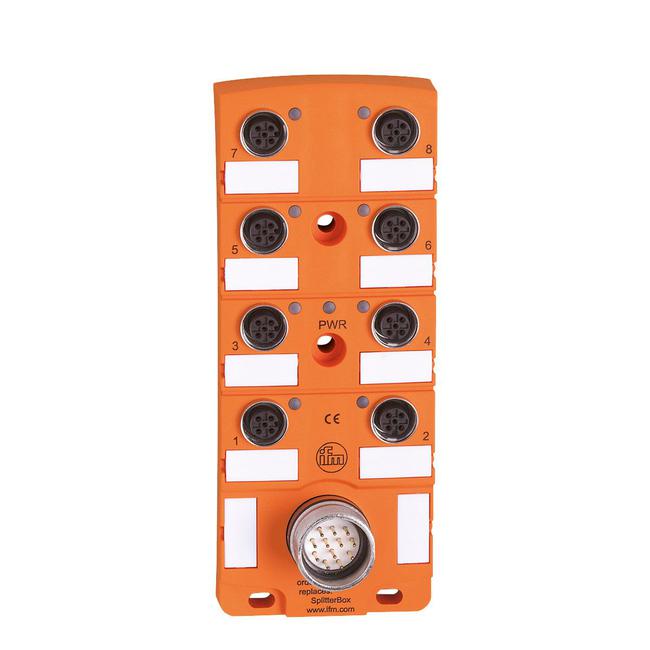

EBC010 ifm ⍾ ZDO8H059MSS0000-00STAK120MSS
Splitter box; Operating voltage [V] : 10...30 DC; ("supply class 2" to cULus); Max. current load per module/slot [A] : 4; Max. current load total [A] : 12; Electrical design : PNP; Ambient temperature [°C] : -25...80; Materials : PA; Moulded-body material : PA; Number of ports splitter box : 8; Connector type : M12; Items supplied : Protective caps: 2 | labels: 8; Connector: 8 x M12; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm
- Connection
- Connector: 1 x M23; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm
- No. of inputs/outputs
- Number of analogue inputs: 1
- Current consumption
- < 60 mA
- Voltage supply
- 24 V
- Display
- switching status: 8 x LED, yellow | operation: 1 x LED, green
- Degree of protection
- IP 67
- Weight
- 304.5 g
- Dimensions
- 33 x 60 x 152 mm
 |
