EBC009 ifm ⍾ ZDO8H050MSS0000-00STAK120MSS

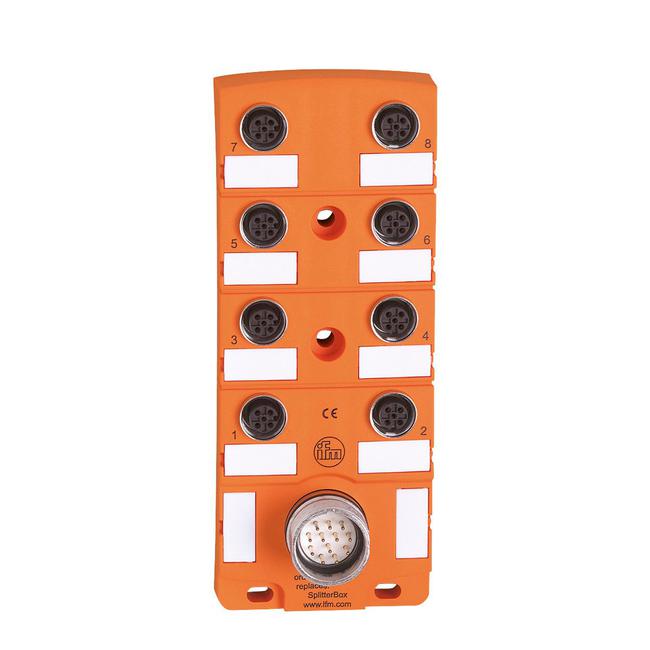

Splitter box; Operating voltage [V] : < 30 AC/DC; ("supply class 2" to cULus); Max. current load per module/slot [A] : 4; Max. current load total [A] : 12; Ambient temperature [°C] : -25...80; Materials : PA; Moulded-body material : PA; Number of ports splitter box : 8; Connector type : M12; Items supplied : Protective caps: 2 | labels: 8; Connector: 8 x M12; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

Type

splitter boxes

Connection

Connector: 1 x M23; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

No. of inputs/outputs

Number of analogue inputs: 1

Current consumption

< 60 mA

Voltage supply

24 V

Display

switching status: 12 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 67

Weight

303.5 g

Dimensions

33 x 60 x 152 mm
