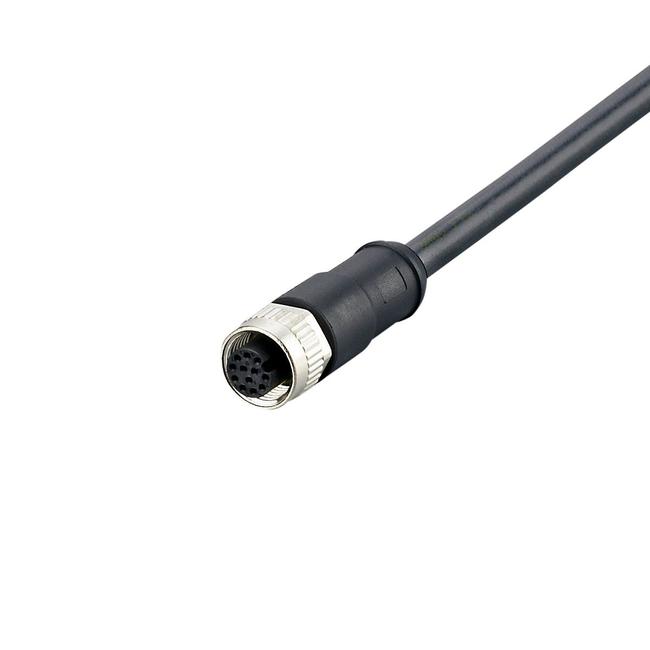

E12502 ifm ⍾ ADOGH120ZDS0005H12

Connecting cable with socket; Protection class : II; Max. current load total [A] : 1.5; Ambient temperature [°C] : -25...90; Materials : PUR; Moulded-body material : PUR; Material nut : diecast zinc; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 5 Mio.; Cable: 5 m, PUR, Halogen-free, black, Ø 6.6 mm; 12 x 0.25 mm²

Connection: Connector: 1 x M12, straight; Moulded body: PUR; Locking: diecast zinc; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm
No. of inputs/outputs: Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1
Current consumption: 100 mA
Voltage supply: 20...30; (via flat cable) V
Display: switching status: 2 x LED, yellow
Degree of protection: IP 67
Weight: 326 g
Dimensions: 20 x 20 x 65.5 mm
