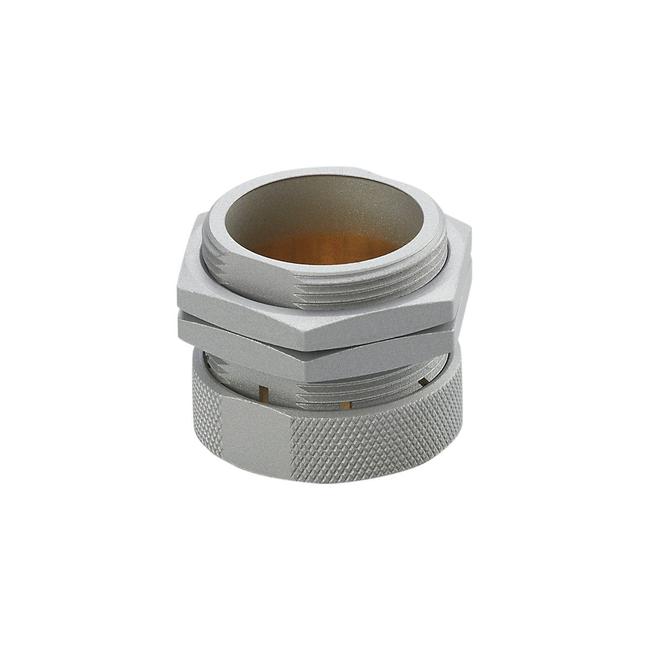

E12454 ifm ⍾ FIXING/M30/NT/K1/COATED/END STOP

Mounting sleeve with end stop; Installation instruction : align the sensing face of the sensor to the right (see scale drawing); Thread designation : M36 x 1.5; Inside diameter [mm] : 30; Materials : brass anti-spatter; Nuts: brass anti-spatter; Tightening torque [Nm] : 7; (lock nuts: 20); Items supplied : Nuts: 2

Type

Clamp holder

Connection

Connector: 1 x M12, straight; Moulded body: PUR; Locking: brass, nickel-plated; Tightening torque: 0.7...0.9 Nm

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

switching status: 2 x LED, yellow

Degree of protection

IP 67

Weight

118.5 g

Dimensions

M36 x 1.5 mm
