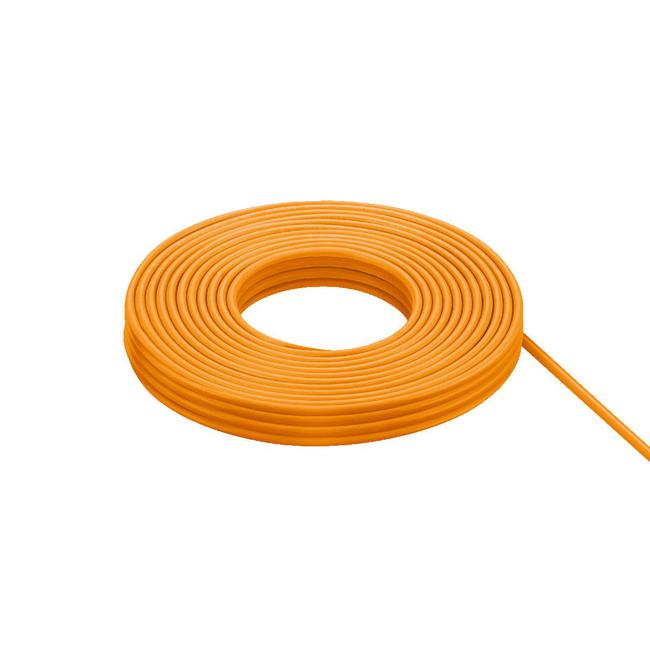

E12359 ifm ⍾ CABLE/100M/PUR/4X0,34/OR

Bulk cable; Ambient temperature [°C] : -40...90; Note on ambient temperature : cRUus: ...80 °C; Ambient temperature (moving) [°C] : -25...90; Note on ambient temperature (moving) : cRUus: ...80 °C; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 2 Mio. | torsional strain: ± 180 °/m; Cable: 100 m, PUR, Halogen-free, orange, Ø 4.9 mm; not irradiated (can be recycled); resistant to welding sparks; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Type

Round cables

Connection

Connector: 1 x M12, straight; Moulded body: PA 6.6

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

switching status: 2 x LED, yellow

Degree of protection

IP 67

Weight

2990 g

Dimensions

20 x 20 x 58 mm
