E12341 ifm ⍾ ADOAH040MSS0030C04

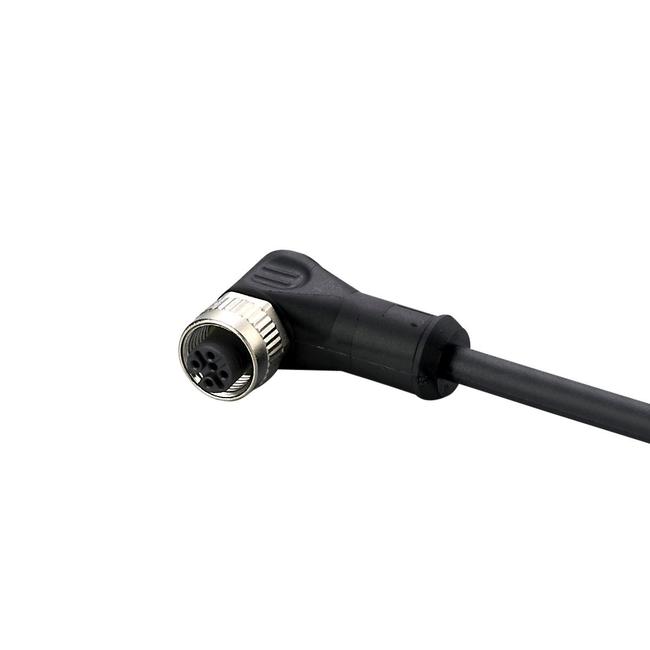

Connecting cable with socket; Protection class : III; Max. current load total [A] : 4; Ambient temperature [°C] : -25...85; Note on ambient temperature : 21 days: ...120; Materials : TPU; Moulded-body material : TPU; Material nut : diecast zinc; Drag chain suitability : yes; Drag chain suitability : bending radius: min. 10 x cable diameter; Cable: 30 m, PUR, Halogen-free, black, Ø 5 mm, shielded; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Type

Connection cables with socket

Connection

Connector: 1 x M12, angled; Moulded body: TPU; Locking: diecast zinc; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm; Shielded connection cable: screen not connected

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

switching status: 2 x LED, yellow

Degree of protection

IP 67

Weight

1479 g

Dimensions

28 x 15 x 38 mm
