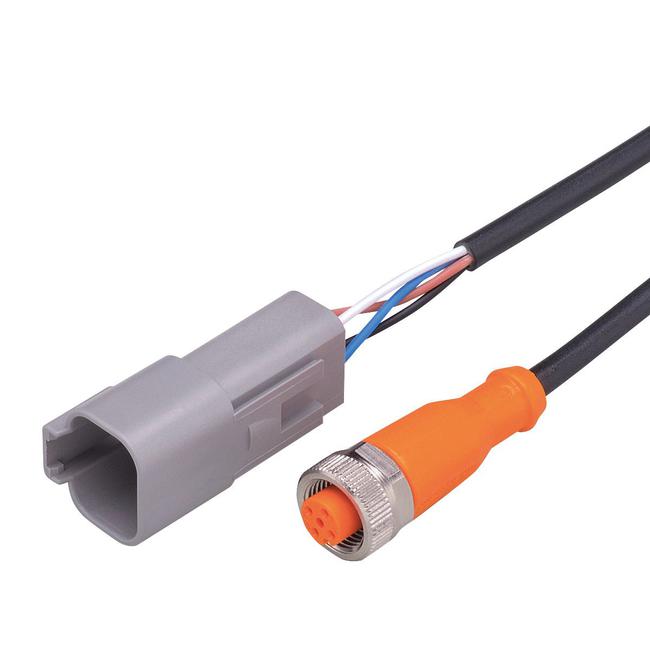

E12336 ifm ⍾ VDOGH040MSS0004H04STGX040--S

Connection cable; Protection class : II; Max. current load total [A] : 4; Ambient temperature [°C] : -25...90; Materials : socket housing: TPU orange; Sealing: FKM; Material nut : brass, nickel-plated; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 5 Mio. | torsional strain: ± 180 °/m; Connector: 1 x DEUTSCH connector, straight; Contacts: nickel-plated; Connector: 1 x M12, straight; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Type

jumper cables

Connection

Cable: 4 m, PUR, Halogen-free, black, Ø 5.1 mm; 4 x 0.50 mm² (64 x Ø 0.1 mm )

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

switching status: 2 x LED, yellow

Degree of protection

IP 67

Weight

179.5 g

Dimensions

14.5 x 14.5 x 48.4 mm
