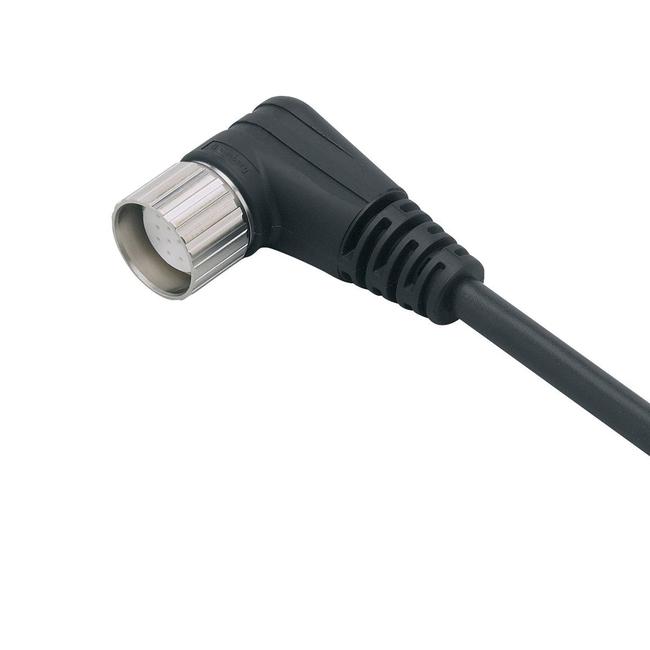

E11746 ifm ⍾ ADOAK190MSS0010H19

Connecting cable with socket; Max. current load total [A] : 8; Ambient temperature [°C] : -25...80; Materials : PUR black; Moulded-body material : PUR; Material nut : brass, nickel-plated; Tightening torque [Nm] : 2; Cable: 10 m, PUR, Halogen-free, black, Ø 11.6 mm; 16 x 0.5 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm )

Type

Connection cables with socket

Connection

Connector: 1 x M23, angled; Moulded body: PUR; Locking: brass, nickel-plated

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 67

Weight

2239 g

Dimensions

51 x 26 x 70 mm
