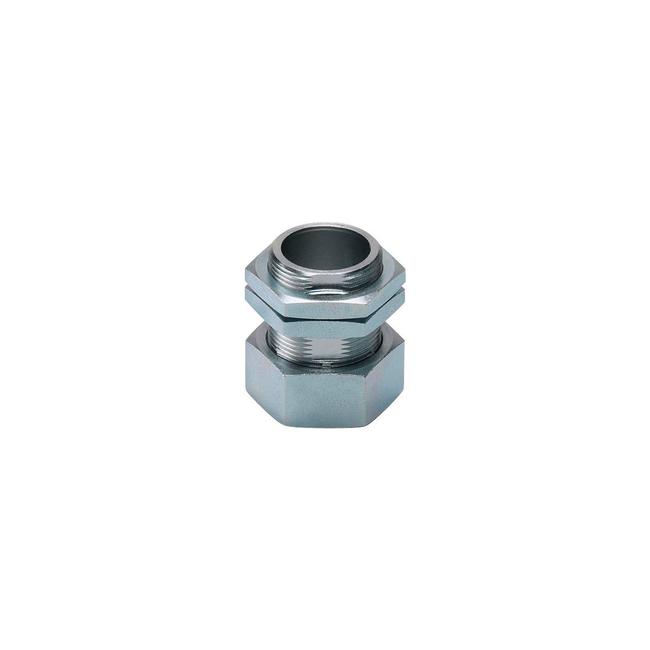

E11513 ifm ⍾ FIXING/M12/MODUL/FE/END STOP

Mounting sleeve with end stop; Installation instruction : align the sensing face of the sensor to the right (see scale drawing); Thread designation : M16 x 1; Inside diameter [mm] : 12; Materials : steel (1.0711 / 9 S20) galvanised; Nuts: steel galvanised; Items supplied : Nuts: 2

Type

Clamp holder

Connection

Connector: 1 x M12, angled; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 68

Weight

51 g

Dimensions

M16 x 1 mm
