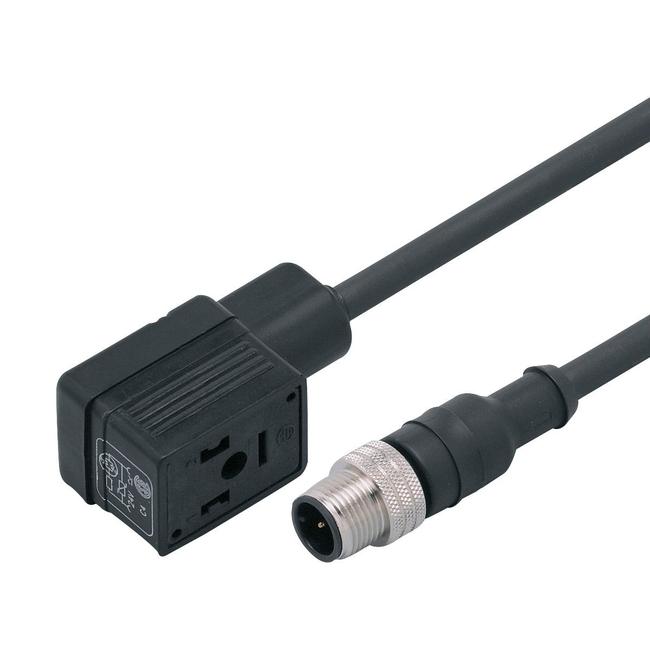

E11422 ifm ⍾ VVDAB031MSS00,6H03STGH030MSS

Jumper cable with valve plug; Overvoltage protection : yes; (VDR); Max. current load total [A] : 3; Ambient temperature [°C] : -25...80; Materials : PUR; Moulded-body material : PUR; Material nut : brass, nickel-plated; Items supplied : screw | panel for labelling; Connector: 1 x M12, straight; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm; Connector: 1 x valve type B DIN, angled; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: nickel-plated brass; Tightening torque: 0.7...0.9 Nm

Type

Jumper cables with valve plug

Connection

Cable: 0.6 m, PUR, Halogen-free, black, Ø 5 mm; 3 x 0.5 mm² (42 x Ø 0.1 mm )

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

operation: 1 x LED, yellow

Degree of protection

IP 67

Weight

73.7 g

Dimensions

18 x 18 x 19 mm
