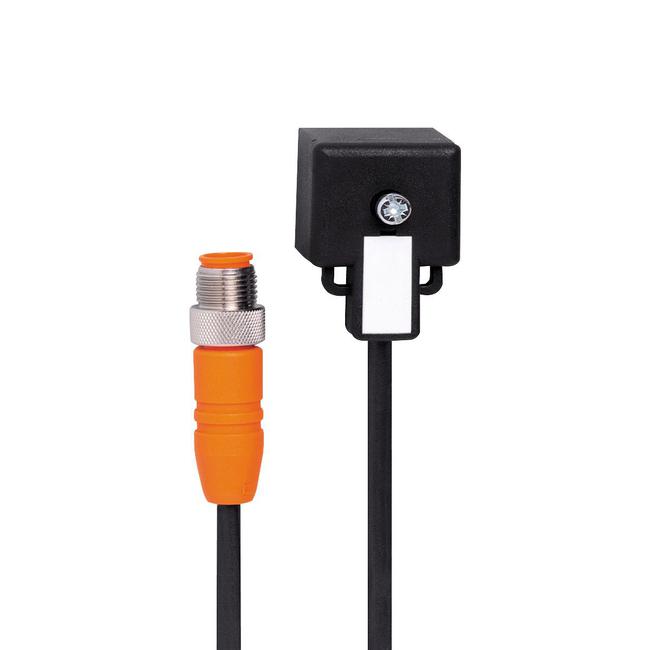

E11277 ifm ⍾ VVDAA040MSS0,75H03STGH020MSS

Jumper cable with valve plug; Ambient temperature [°C] : -40...90; Materials : TPU; Moulded-body material : TPU; Material nut : brass, nickel-plated; Items supplied : screw | panel for labelling; Connector: 1 x M12, straight; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm; Connector: 1 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm

Type

Jumper cables with valve plug

Connection

Cable: 0.75 m, PUR; 2 x 0.75 mm²

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

operation: 1 x LED, yellow

Degree of protection

IP 67; IP 69K

Weight

85 g

Dimensions

30 x 30 x 68 mm
