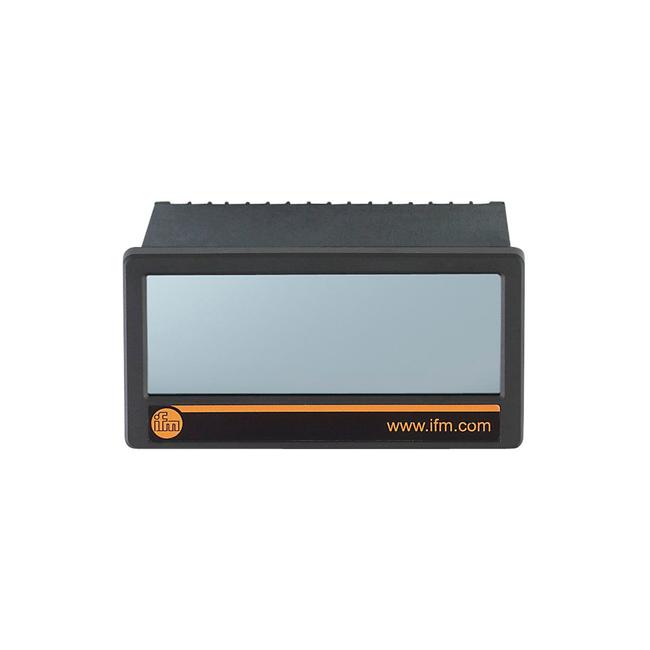

DX2043 ifm ⍾ DISPLAY/AX460/ANALOG/AC/DC

Digital display; Frequency AC [Hz] : 50...60; Power consumption [W] : 3; Number of analogue inputs : 2; (Spannungs- oder Stromeingang); Analogue input (current) [mA] : 0...20; Analogue input (voltage) [V] : -10...10; Resolution of analogue input : 16 bit; Precision analogue input [%] : 0,1; Number of digital outputs : 4; Max. current load per output [mA] : 200; Number of analogue outputs : 1; (Spannungs- oder Stromausgang); Analogue current output [mA] : 0...20; Max. load [Ω] : 270; Analogue voltage output [V] : -10...10; Precision analogue output [%] : 0,1; Overload protection : yes; Resolution of analogue output : 16 bit; Ambient temperature [°C] : -20...60; Storage temperature [°C] : -25...70; Protection rating terminals : IP 20; Type of mounting : panel cutout: 91 x 43 mm; Materials : Noryl UL94-V-0

Type

Signalling and display systems

Connection

screw terminals:

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

colour display: full graphic LCD display, touch screen

Degree of protection

IP 65

Weight

350.5 g

Dimensions

48 x 112 x 116 mm
