DW250-70-PA-H1141 Turck ⍾ 1544533 ⍾ DW25070PAH1141

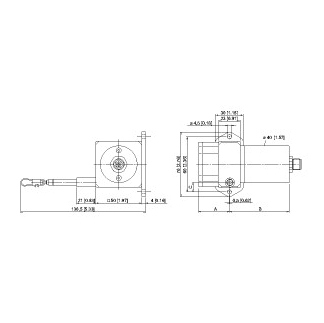

Draw-Wire. Measuring range up to 250 mm. M12 connector. Protection class: IP65. Analog output, 4...20 mA. Supply voltage 12...30 VDC.

Draw-Wire. Measuring range up to 500mm. M12 connector. Protection class: IP65. Analog output, 4...20 mA. Supply voltage 12...30 VDC.

Draw-Wire. Measuring range up to 500mm. M12 connector. Protection class: IP65. Potentiometric output 1k Ohm. Supply voltage max. 30 VDC.

Draw-Wire. Measuring range up to 1000mm. M12 connector. Protection class: IP65. Analog output, 4...20 mA. Supply voltage 12...30 VDC.

Draw-Wire. Measuring range up to 1000mm. M12 connector. Protection class: IP65. Potentiometric output 1k Ohm. Supply voltage max. 30 VDC.

Draw-Wire. Measuring range up to 2000mm. M12 connector. Protection class: IP65. Analog output, 4...20 mA. Supply voltage 12...30 VDC.

Draw-Wire. Measuring range up to 2000mm. M12 connector. Protection class: IP65. Potentiometric output 1k Ohm. Supply voltage max. 30 VDC.

Draw-Wire. Measuring range up to 3000mm. M12 connector. Protection class: IP65. Analog output, 4...20 mA. Supply voltage 12...30 VDC.

Draw-Wire. Measuring range up to 3000mm. M12 connector. Protection class: IP65. Potentiometric output 1k Ohm. Supply voltage max. 30 VDC.

Draw-Wire. Measuring range up to 6000mm. M12 connector. Protection class: IP65. Analog output, 4...20 mA. Supply voltage 12...30 VDC.

Draw-Wire. Measuring range up to 6000mm. M12 connector. Protection class: IP65. Potentiometric output 1k Ohm. Supply voltage max. 30 VDC.

Draw-Wire. Measuring range up to 10000mm. M12 connector. Protection class: IP65. Analog output, 4...20 mA. Supply voltage 12...30 VDC.
