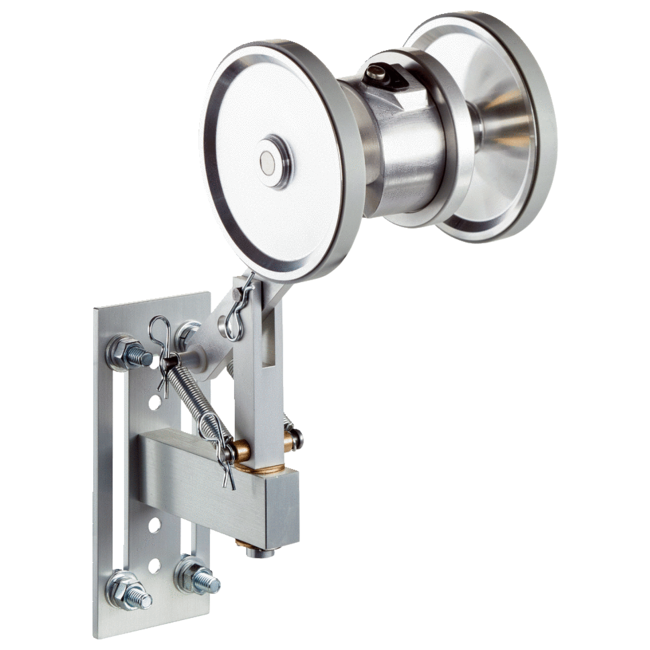

DUV60E-D4KFHDFB SICK1087569DUV60ED4KFHDFB

Performance: Linear resolution: 0.125 mm/pulse to 304.8 mm/pulse (type-dependent); Pulses per revolution: 1 ... 60 1); Measuring step: 90° electric/pulses per revolution; Measuring increment (resolution in mm/pulse): / pulses per revolution; Measuring step deviation: ± 18°, / pulses per revolution; Error limits: Measuring step deviation x 3; Duty cycle: 0.5 ± 5 %; Initialization time: < 5 ms 2); Interfaces: Communication interface: Incremental; Communication Interface detail: TTL / HTL; Parameterising data: DIP switch, selectable output; Electrical data: Operating power consumption (no load): 120 mA; Connection type: Male connector, M12, 4-pin, universal 1); Pulses per revolution: ✔; Output voltage: ✔; Direction of rotation: ✔; Power consumption max. without load: ≤ 1.25 W; Supply voltage: 4.75 V ... 30 V; Load current max.: ≤ 30 mA, per channel; Maximum output frequency: 60 kHz; Reference signal, number: 1; Reference signal, position: 180°, electric, gated with A; Reverse polarity protection: ✔; Short-circuit protection of the outputs: ✔; MTTFd: mean time to dangerous failure: 275 years (EN ISO 13849-1) 2); Mechanical data: Measuring wheel circumference: 12 ″; Measuring wheel surface: Smooth plastic (urethane) 1); Spring arm design: Spring tension, under-belt flange mount; Mass: 0.9 kg 2); Shaft: Stainless steel; Flange: Aluminum; Housing: Aluminum; Cable: PVC; Spring element: Spring steel; Measuring wheel, spring arm: Aluminum; Yoke: Aluminum; Counterweight: Aluminum; Start up torque: 0.5 Ncm; Operating torque: 0.4 Ncm; Operating speed: 1,500 min⁻¹; Bearing lifetime: 3.6 x 109 revolutions; Maximum travel/deflection of spring arm: 40 mm 3); Recommended pretension: 20 mm 3); Max. permissible working area for the spring (continuous operation): ± 10 mm; Ambient data: EMC: According to EN 61000-6-2 and EN 61000-6-3; Permissible relative humidity: 90 % (condensation of the optical scanning not permitted); Operating temperature range: –30 °C ... +70 °C; Storage temperature range: –40 °C ... +75 °C; Classifications: ECl@ss 5.0: 27270501; ECl@ss 5.1.4: 27270501; ECl@ss 6.0: 27270590; ECl@ss 6.2: 27270590; ECl@ss 7.0: 27270501; ECl@ss 8.0: 27270501; ECl@ss 8.1: 27270501; ECl@ss 9.0: 27270501; ECl@ss 10.0: 27270790; ECl@ss 11.0: 27270707; ETIM 5.0: EC001486; ETIM 6.0: EC001486; ETIM 7.0: EC001486; UNSPSC 16.0901: 41112113
