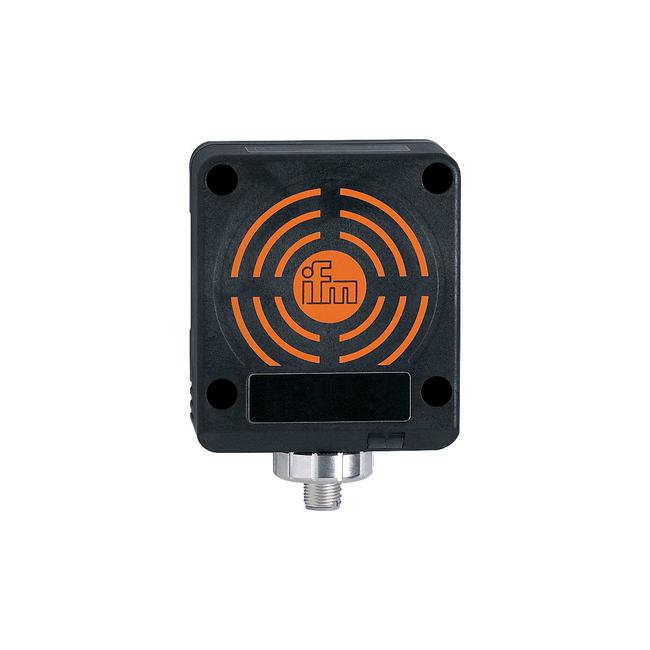

DTA301 ifm ⍾ DTSLF DCROASUS01

RFID read head with AS-Interface; Protection class : III; Operating frequency [MHz] : 0,125; Electrical design : AS-i; Travel speed [m/s] : < 0.5; Distance read/read head front : 400; Distance read/read head side : 280; Note on distance read/read head : referred to: : | Read/write head: DTA300 | Read head: DTA301; Distance write/read head front [mm] : 500; Distance write/read head side [mm] : 500; Note on distance write/read head : referred to: : | Read/write head: DTA300 | Read head: DTA301; Distance to the ID tag [mm] : read: :: ≤ 80 | static; Communication interface : AS-i; Ambient temperature [°C] : -20...60; Storage temperature [°C] : -25...80; Housing : rectangular; Materials : housing: PPE; metal parts: diecast zinc / brass nickel-plated

Type

AS-Interface systems and sensors

Connection

Connector: 1 x M12, rotatable

No. of inputs/outputs

Number of relay outputs: 2

Current consumption

< 65 mA

Voltage supply

20...30; (via flat cable) V

Display

Operating voltage: 1 x LED, green | tag communication: 1 x LED, yellow | error AS-i data communication: 1 x LED, red

Degree of protection

IP 67

Weight

413.5 g

Dimensions

92 x 80 x 40 mm
