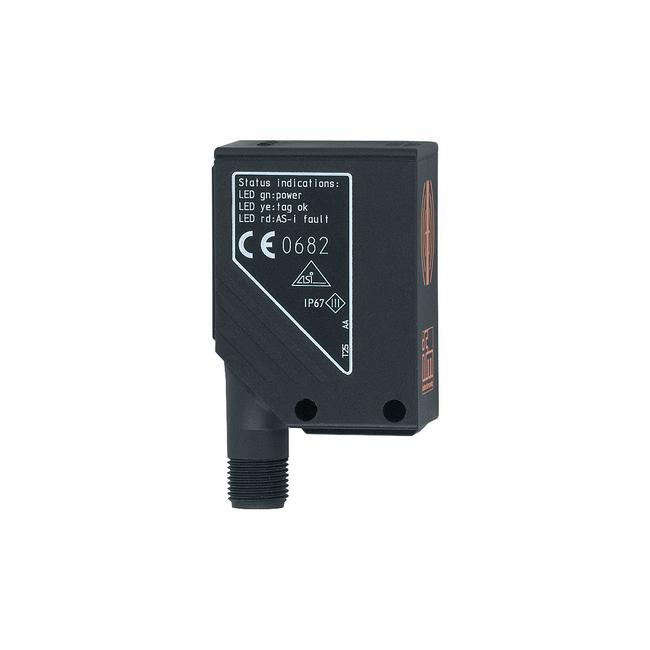

DTA100 ifm ⍾ DTSLF AARWASUS01

RFID read/write head with AS-Interface; Protection class : III; Operating frequency [MHz] : 0,125; Electrical design : AS-i; Travel speed [m/s] : < 0.5; Distance read/read head front : 200; Distance read/read head side : 200; Note on distance read/read head : referred to: : | Read/write head: DTA100 | Read head: DTA101; Distance write/read head front [mm] : 400; Distance write/read head side [mm] : 400; Note on distance write/read head : referred to: : | Read/write head: DTA100 | Read head: DTA101; Distance to the ID tag [mm] : read: :: ≤ 20 | static; Communication interface : AS-i; Ambient temperature [°C] : -20...50; Storage temperature [°C] : -25...80; Housing : rectangular; Materials : PA

Type

AS-Interface systems and sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of relay outputs: 2

Current consumption

< 50 mA

Voltage supply

20...30; (via flat cable) V

Display

Operating voltage: 1 x LED, green | tag communication: 1 x LED, yellow | error AS-i data communication: 1 x LED, red

Degree of protection

IP 67

Weight

146.5 g

Dimensions

55 x 24 x 41 mm
