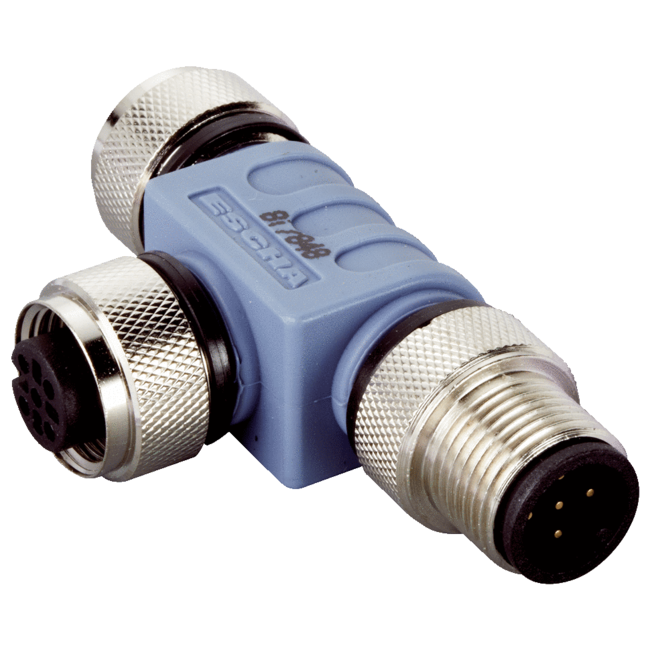

DSC-1205T000025KM0 SICK ⍾ 6030664 ⍾ DSC1205T000025KM0

Classifications: ECl@ss 5.0: 27279201; ECl@ss 5.1.4: 27279201; ECl@ss 6.0: 27279201; ECl@ss 6.2: 27279201; ECl@ss 7.0: 27279201; ECl@ss 8.0: 27279201; ECl@ss 8.1: 27279201; ECl@ss 9.0: 27440108; ECl@ss 10.0: 27440108; ECl@ss 11.0: 27440108; ETIM 5.0: EC002585; ETIM 6.0: EC002585; ETIM 7.0: EC002585; UNSPSC 16.0901: 31163032; Technical specifications: Accessory family: T-junctions; Connection type head A: Female connector, M12, 5-pin, A-coded; Connection type head B: Male connector, M12, 5-pin, A-coded; Connection type head C: Female connector, M12, A-coded; Housing material: TPU; Housing color: Blue; Locking nut material: CuZn, nickel-plated brass; Reference voltage: ≤ 60 V; Current loading: 4 A; Note: 5-pin; Ambient operating temperature: –30 °C ... +90 °C; Enclosure rating: IP67 1); Description: T-piece for simultaneous connection to sender and receiver, splits the cable from the control cabinet to the sender and receiver

Type

Accessories
