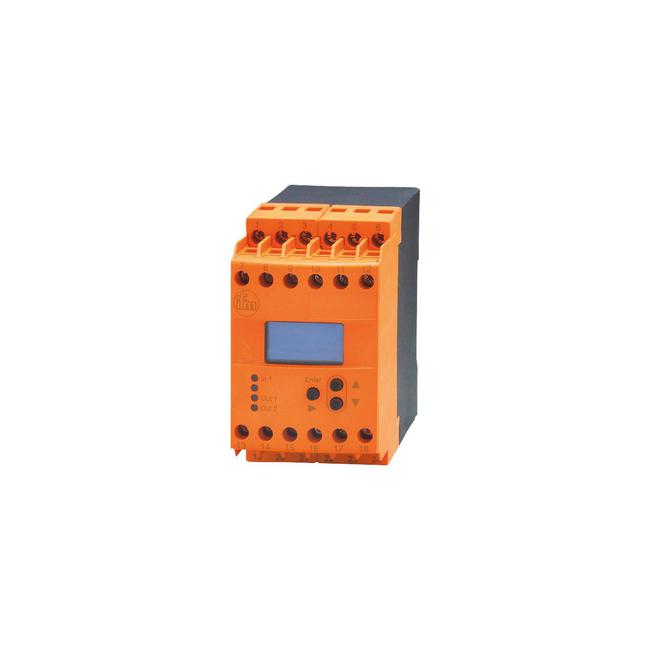

DS2503 ifm ⍾ MONITOR/FS-1 /110-240VAC/DC

Evaluation unit for slip and synchronous monitoring; Nominal voltage AC [V] : 110...240; Nominal voltage DC [V] : 27; Nominal voltage tolerance [%] : < 10; Nominal voltage tolerance 2 [%] : 20...10; Nominal frequency AC [Hz] : 50...60; Power consumption [W] : 3; Auxiliary energy for sensors DC [V] : 19.6...27.7; (SELV, ≤ 150 mA); Number of relay outputs : 2; Contact rating : 6 A (250 V AC); B300, R300; Setting range Hz [Hz] : 0.1...1000; Setting range [Imp/min] : 1...60000; Ambient temperature [°C] : -40...60; Storage temperature [°C] : -40...85; Max. relative air humidity [%] : 80; (40 °C: 50 %); Protection rating terminals : IP 20; Housing : housing for DIN rail mounting; Materials : plastics; dual-chamber terminals: 2 x ...2.5 mm²; AWG 14

Type

Pulse evaluation systems

Connection

Connector: M12

No. of inputs/outputs

Number of relay outputs: 2

Current consumption

30...830; (24 V DC, full load) mA

Voltage supply

20...30; (via flat cable) V

Display

OLED display, 128 x 64 pixels luminous | switching status: LED, green | input signal: LED, green

Degree of protection

IP 50

Weight

382.5 g

Dimensions

78 x 45 x 124.7 mm
