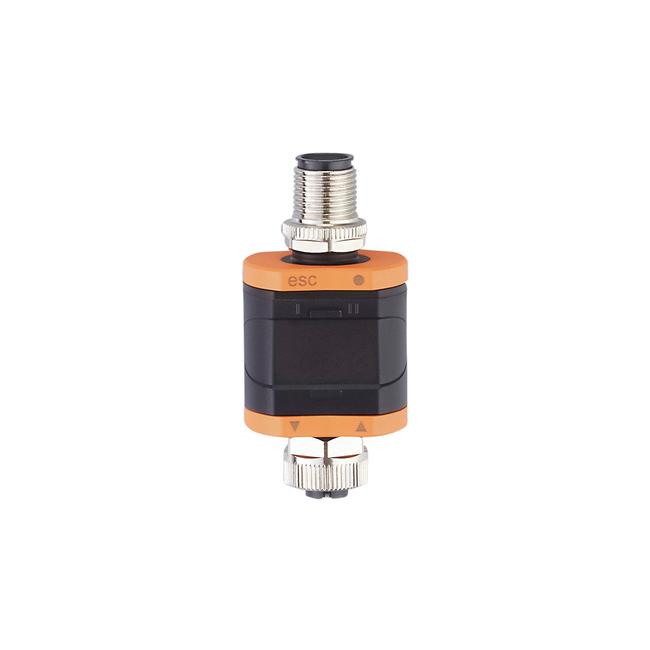

DP2200 ifm ⍾ Analog Threshold Displ./4-20mA

Evaluation system and display for analogue signals; Nominal voltage DC [V] : 24; Sensor supply of the inputs : 24 V DC; Number of analogue inputs : 1; Analogue input (current) [mA] : 4...20; Number of digital outputs : 1; Voltage range DC [V] : 10...30; Output function : normally open / normally closed; (parameterisable); Max. current load per output [mA] : 50; Analogue current output [mA] : 4...20; Precision analogue output [%] : 0,5; Resolution of analogue output : 10 Bit; Measuring error [% of the final value] : 0,5; Communication interface : IO-Link; Supported DeviceIDs : Type of operation: DeviceID | Default: 610; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9; Profiles : Smart Sensor; SIO mode : yes; Required master port type : A; Process data analogue : 1; Process data binary : 1; Min. process cycle time [ms] : 3; Ambient temperature [°C] : -25...60; Storage temperature [°C] : -25...70; Max. relative air humidity [%] : 90; (linearly decreasing to 50 % (40 °C); non condensing); Max. height above sea level [m] : 2000; Materials : PA; Accessories (optional) : mounting clip

Type

Systems for signal conversion

Connection

Connector: M12

No. of inputs/outputs

Number of analogue inputs: 1; Number of digital outputs: 1

Current consumption

30...830; (24 V DC, full load) mA

Voltage supply

20...30; (via flat cable) V

Display

switching status: LED, yellow | operation: LED, green | 7-segment LED display, red/green 4-digit parameterisable | digit height 6,8 mm | digit width 3,8 mm

Degree of protection

IP 67

Weight

108 g

Dimensions

63 x 30 x 24 mm
