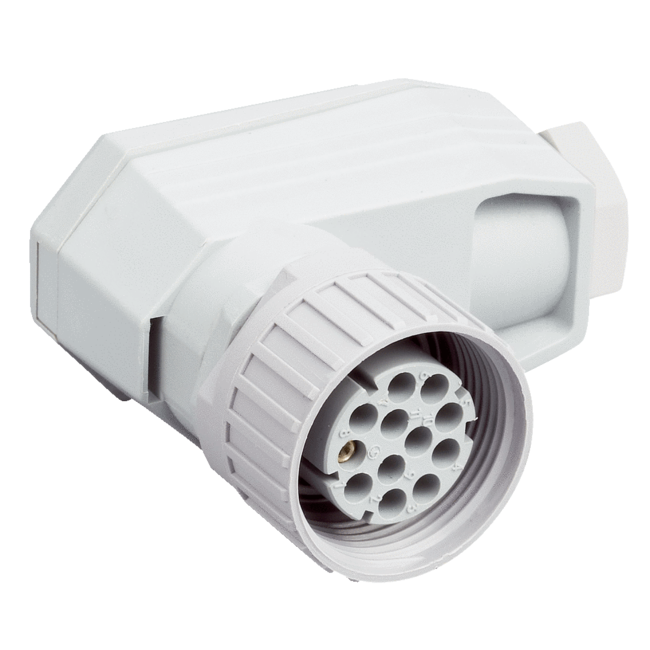

DOS-0612W000GA3KM0 SICK ⍾ 6020758 ⍾ DOS0612W000GA3KM0

Technical specifications: Accessory group: Plug connectors and cables; Accessory family: Field-attachable connectors; Connection type head A: Female connector, M26, 12-pin, angled; Connection type: Crimp contacts; Connector color: Gray; Shielding: Unshielded; Permitted cable diameter: 8 mm ... 10 mm; Permitted cross-section: 0.5 mm² ... 1.5 mm²; Reference voltage: ≤ 50 V AC, ≤ 60 V DC; Rated impulse voltage: 1.5 kV; Current loading: 5 A; Note: 12 crimping contacts enclosed; Enclosure rating: IP65; Ambient operating temperatureHead–40 °C ... +90 °C: Ambient operating temperature; Classifications: ECl@ss 5.0: 27279290; ECl@ss 5.1.4: 27279290; ECl@ss 6.0: 27279221; ECl@ss 6.2: 27279221; ECl@ss 7.0: 27440104; ECl@ss 8.0: 27440104; ECl@ss 8.1: 27440104; ECl@ss 9.0: 27440102; ECl@ss 10.0: 27440102; ECl@ss 11.0: 27440102; ETIM 5.0: EC002635; ETIM 6.0: EC002635; ETIM 7.0: EC002635; UNSPSC 16.0901: 39121421; Technical specifications: Accessory group: Plug connectors and cables; Accessory family: Field-attachable connectors; Connection type head A: Female connector, M26, 12-pin, angled; Connection type: Crimp contacts; Connector color: Gray; Shielding: Unshielded; Permitted cable diameter: 8 mm ... 10 mm; Permitted cross-section: 0.5 mm² ... 1.5 mm²; Reference voltage: ≤ 50 V AC, ≤ 60 V DC; Rated impulse voltage: 1.5 kV; Current loading: 5 A; Note: 12 crimping contacts enclosed; Enclosure rating: IP65; Ambient operating temperatureHead–40 °C ... +90 °C: Ambient operating temperature

Type

Accessories
