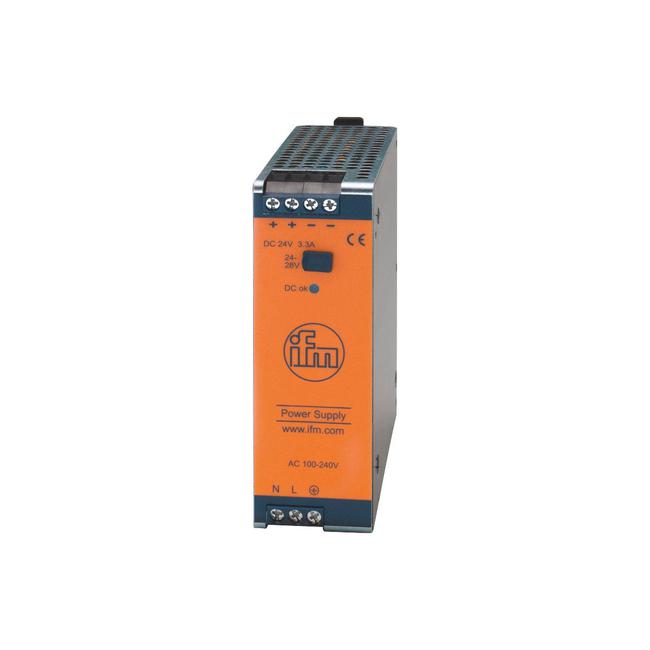

DN4012 ifm ⍾ PSU-1AC/24VDC-5A

Switched-mode power supply 24 V DC; Frequency AC [Hz] : 47...64; Operating voltage tolerance [%] : 10; Operating voltage tolerance 2 [%] : 10; Nominal voltage AC [V] : < 230; Input voltage range AC [V] : 100...120 / 200...240; (automatic range selection); Output voltage DC [V] : 24...28; Protection class : I; (IEC 61140); Overvoltage protection : yes; (< 39 DC); Output voltage [V] : adjustable; output voltage to SELV, PELV; Max. output current at min. output voltage [A] : 5; Max. output current at max. output voltage [A] : 4.3; Max. output current peak at min. output voltage [A] : 6; Max. output current peak at max. output voltage [A] : 5.1; Output power (permanent) [W] : 120; Output power (peak) [W] : 144; Note on output power (peak) : ≤ 45 °C permitted continuously; > 45 °C < 1 minute every 10 minutes; Power factor (nominal voltage 120 V AC / 60 Hz) : 0.56; Power factor (nominal voltage 230 V AC / 50 Hz) : 0.47; Power reserve [%] : 20; Number of output circuits : 1; Max. residual ripple [mV] : 50; Switch-on peak current (nominal voltage 120 V AC / 60 Hz) [A] : 3; Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A] : 3; Inrush current limitation : yes; Efficiency (nominal voltage 120 V AC / 60 Hz) [%] : 89.4; Efficiency (nominal voltage 230 V AC / 50 Hz) [%] : 90.2; External input protection : ≤ B-10 A / ≤ C-6 A; Derating [W/K] : 3 (60...70 °C); Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms] : 80; Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] : 78; Input current (nominal voltage 120 V AC / 60 Hz) [A] : 2.05; Input current (nominal voltage 230 V AC / 50 Hz) [A] : 1.23; Power loss (nominal voltage 120 V AC / 60 Hz) [W] : 14.5; Power loss (nominal voltage 230 V AC / 50 Hz) [W] : 13.2; Back feeding protection [V] : 35; Short-circuit proof : yes; Overload protection : yes; Overload performance : output current constant; Parallel connection of outputs possible : no; Series connection of outputs possible : yes; Ambient temperature [°C] : -25...70; Note on ambient temperature : observe the free space for convection (see operating instructions); Storage temperature [°C] : -40...85; Max. relative air humidity [%] : 95; (IEC 60068-2-30); Degree of soiling : 2; (IEC 62103: conductive soiling not permitted); Type of mounting : rail; (TH35 (EN 60715)); Materials : steel sheet

Type

Power supplies

Connection

screw terminals:

No. of inputs/outputs

Number of relay outputs: 2

Current consumption

< 15 mA

Voltage supply

20...30; (via flat cable) V

Display

DC ok: 1 x LED

Degree of protection

IP 20; (EN 60529)

Weight

594.5 g

Dimensions

124 x 40 x 122.5 mm
