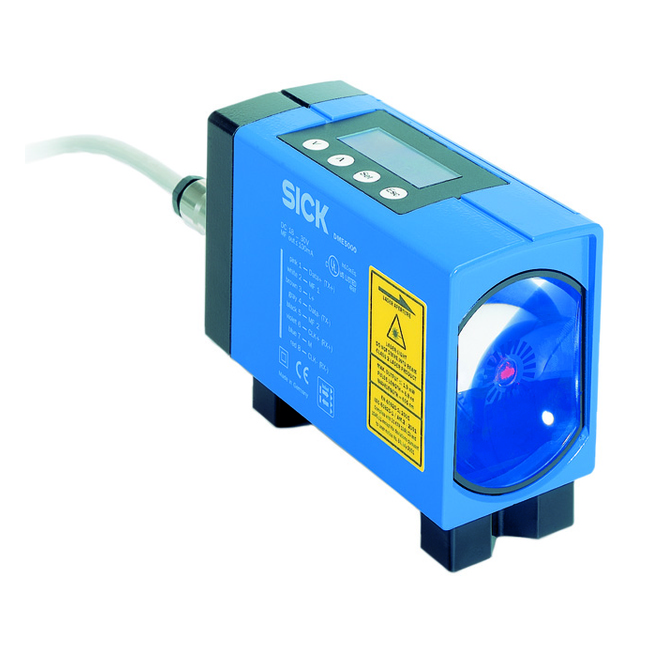

DME5000-223 SICK ⍾ 1025251 ⍾ DME5000223
The DME5000 series laser distance sensor offers a measurement range of 0.15 m to 150 m (on diamond grade reflective tape) with an output time of 2 ms. It features a repeatability of 1 mm and an accuracy of ± 3 mm. The sensor utilizes a serial communication interface and operates with a current consumption of less than 1,000 mA at 24 V DC. Connection is facilitated through an M16, 8-pin male connector.
- Type
- DME5000
 |
SICK DME5000-223 Datasheet PDF (en) Size: 986 KB |
Download |
