DL100-21AA2101 SICK ⍾ 1052684 ⍾ DL10021AA2101

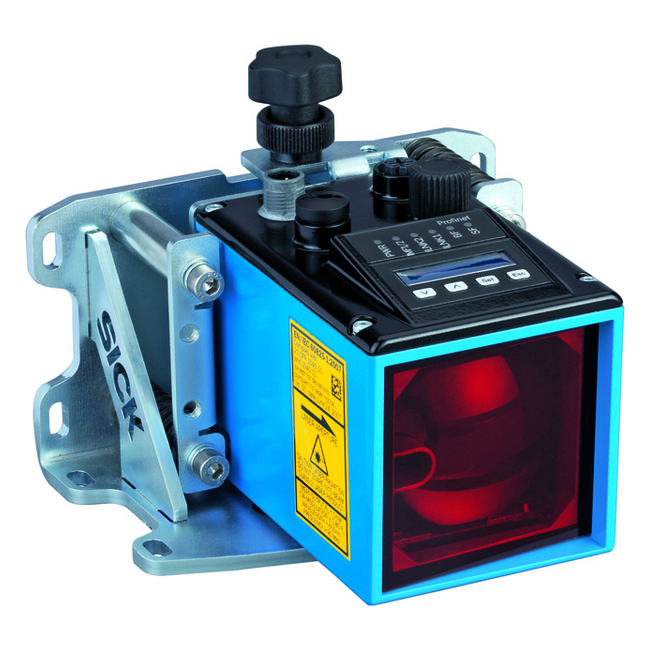

The Dx100 DL100-21AA2101 is a laser distance sensor with an SSI communication interface. Its measuring range is 0.15 m to 100 m on diamond grade reflective tape. The sensor offers a repeatability of 0.5 mm and an accuracy of ± 2 mm. It features two push-pull (PNP/NPN) digital outputs and does not include heating. The modulation frequency is fixed.
- Type
- Dx100
- Customs tariff number
- 90314990
- Expected origin
- DE
- Weight
- 0.99 kg
 |
SICK DL100-21AA2101 Datasheet PDF (en) Size: 1.10 MB |
Download |
