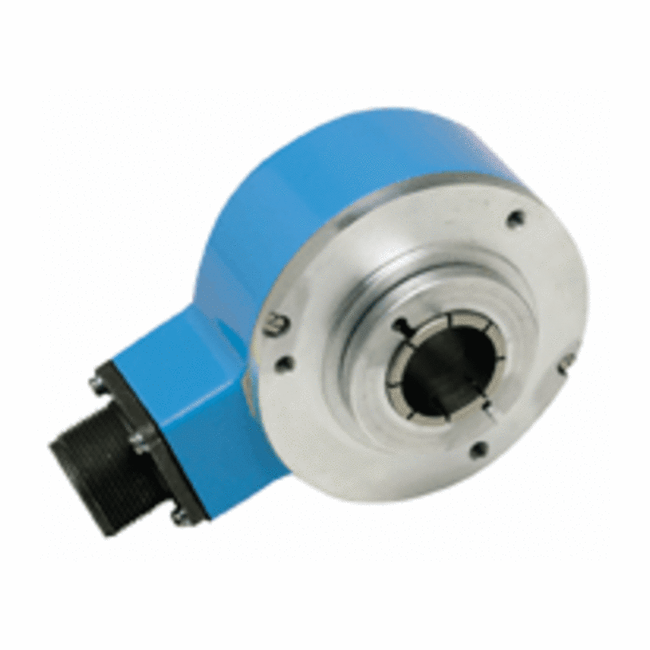

DGS35-3J401024 SICK7126765DGS353J401024

Performance: Pulses per revolution: 1,024; Measuring step: 90° electric/pulses per revolution; Measuring step deviation: ± 45° / pulses per revolution; Error limits: ± 45° / pulses per revolution; Interfaces: Communication interface: Incremental; Communication Interface detail: TTL / RS-422; Output frequency: 300 kHz; Load current: 40 mA; Operating current: 100 mA (without load); Electrical data: Connection type: Male connector, MS, 10-pin, radial; Supply voltage: 8 ... 24 V; Reference signal, number: 1; Reference signal, position: 180°, electronically, gated with B negative; Reverse polarity protection: ✔; Mechanical data: Mechanical design: Through hollow shaft; Shaft diameter: 1" 1); Flange type / stator coupling: Stator coupling over dowel pin supplied by customer; Weight: 1.1 kg 2); Shaft material: Brass; Flange material: Aluminum; Housing material: Aluminum; Start up torque: 9 Ncm (+20 °C); Operating torque: 7 Ncm (+20 °C); Permissible shaft movement, axial static/dynamic: 0.5 mm / 0.5 mm; Permissible shaft movement, radial static/dynamic: 0.5 mm / 0.1 mm; Operating speed: 3,000 min⁻¹; Moment of inertia of the rotor: 490 gcm²; Bearing lifetime: 4.5 x 10^9 revolutions; Angular acceleration: ≤ 100,000 rad/s²; Ambient data: EMC: EN 61000-6-2, EN 61000-6-3; Enclosure rating: IP66, housing side, male connector connection 1); Permissible relative humidity: 95 % (condensation of the optical scanning not permitted); Operating temperature range: –20 °C ... +70 °C; Storage temperature range: –30 °C ... +85 °C, without package; Resistance to shocks: 50 g, 11 ms; Resistance to vibration: 20 g, 5 Hz ... 2,000 Hz; Classifications: ECl@ss 5.0: 27270501; ECl@ss 5.1.4: 27270501; ECl@ss 6.0: 27270590; ECl@ss 6.2: 27270590; ECl@ss 7.0: 27270501; ECl@ss 8.0: 27270501; ECl@ss 8.1: 27270501; ECl@ss 9.0: 27270501; ECl@ss 10.0: 27270501; ECl@ss 11.0: 27270501; ETIM 5.0: EC001486; ETIM 6.0: EC001486; ETIM 7.0: EC001486; UNSPSC 16.0901: 41112113
