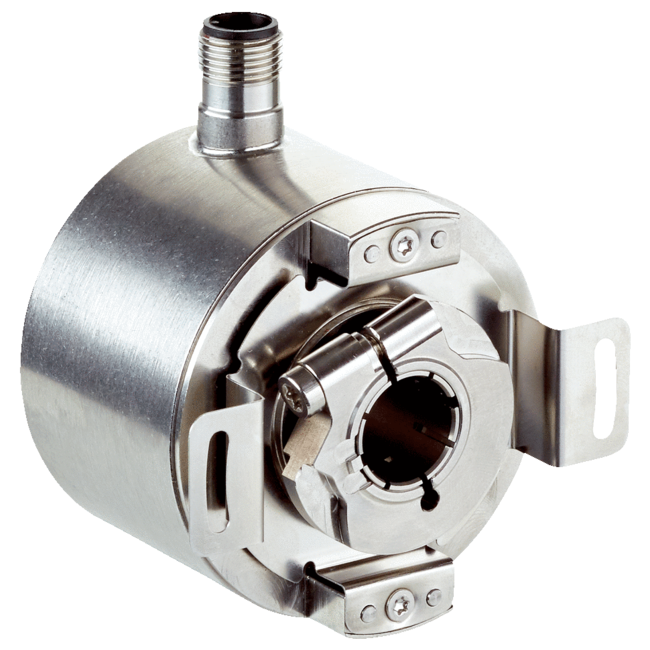

DFS60I-BHCC01024 SICK1099311DFS60IBHCC01024

Performance: Pulses per revolution: 1,024 1); Measuring step: 90° electric/pulses per revolution; Measuring step deviation at binary number of lines: ± 0.008°; Error limits: ± 0.03°; Interfaces: Communication interface: Incremental; Communication Interface detail: TTL / RS-422; Number of signal channels: 6-channel; Initialization time: 40 ms; Output frequency: ≤ 820 kHz; Load current: ≤ 30 mA; Power consumption: ≤ 0.5 W (without load); Electrical data: Connection type: Male connector, M12, 8-pin, radial; Supply voltage: 10 ... 32 V; Reference signal, number: 1; Reference signal, position: 90°, electric, logically gated with A and B; Reverse polarity protection: ✔; Short-circuit protection of the outputs: ✔ 1); MTTFd: mean time to dangerous failure: 300 years (EN ISO 13849-1) 2); Mechanical data: Mechanical design: Blind hollow shaft; Shaft diameter: 15 mm; Weight: + 0.5 kg; Shaft material: Stainless steel V2A; Flange material: Stainless steel V2A; Housing material: Stainless steel V2A; Start up torque: 1 Ncm (+20 °C); Operating torque: 0.5 Ncm (+20 °C); Permissible shaft movement, axial static/dynamic: ± 0.5 mm / ± 0.01 mm; Permissible shaft movement, radial static/dynamic: ± 0.3 mm / ± 0.05 mm; Operating speed: ≤ 6,000 min⁻¹ 1); Moment of inertia of the rotor: 40 gcm²; Bearing lifetime: 3.6 x 10^10 revolutions; Angular acceleration: ≤ 500,000 rad/s²; Ambient data: EMC: According to EN 61000-6-2 and EN 61000-6-4; Enclosure rating: IP67, housing side (according to IEC 60529) 1)IP67, shaft side (according to IEC 60529); Permissible relative humidity: 90 % (condensation of the optical scanning not permitted); Operating temperature range: –40 °C ... +100 °C 2)–30 °C ... +100 °C 3); Storage temperature range: –40 °C ... +100 °C, without package; Resistance to shocks: 100 g, 6 ms (according to EN 60068-2-27); Resistance to vibration: 10 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6); Classifications: ECl@ss 5.0: 27270501; ECl@ss 5.1.4: 27270501; ECl@ss 6.0: 27270590; ECl@ss 6.2: 27270590; ECl@ss 7.0: 27270501; ECl@ss 8.0: 27270501; ECl@ss 8.1: 27270501; ECl@ss 9.0: 27270501; ECl@ss 10.0: 27270501; ECl@ss 11.0: 27270501; ETIM 5.0: EC001486; ETIM 6.0: EC001486; ETIM 7.0: EC001486; UNSPSC 16.0901: 41112113
