DBV50E-22EPA0200 SICK ⍾ 1081391 ⍾ DBV50E22EPA0200

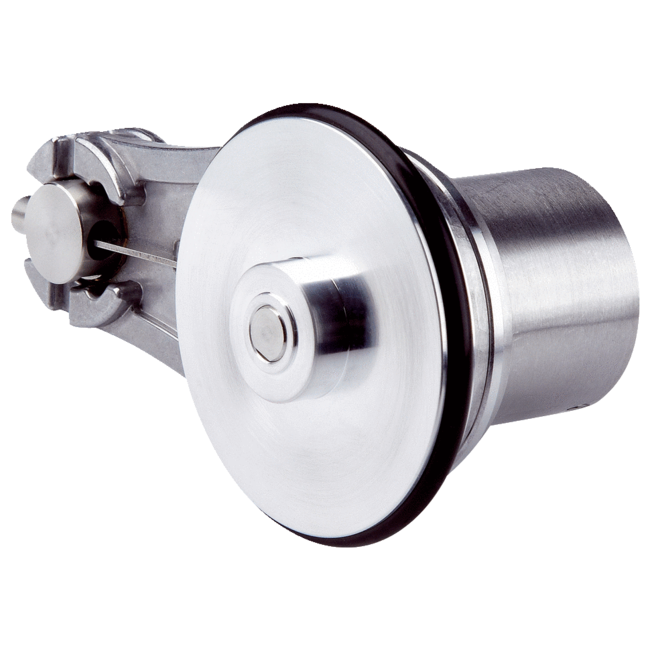

The DBV50 and DBV50E-22EPA0200 are measuring wheel encoders featuring a 200 mm circumference and an O-ring NBR70 surface. They offer incremental HTL push-pull communication with a supply voltage of 7-30V. The connection is via an 8-wire cable with an M12, 8-pin male connector (0.5m). Resolution is 1 pulse/mm. The design incorporates a 63.5 mm spring arm with the encoder on the left mounting side, utilizing a single wheel configuration.

Type

Measuring wheel encoders

Customs tariff number

90314990

Expected origin

MY

Weight

0.34 kg
