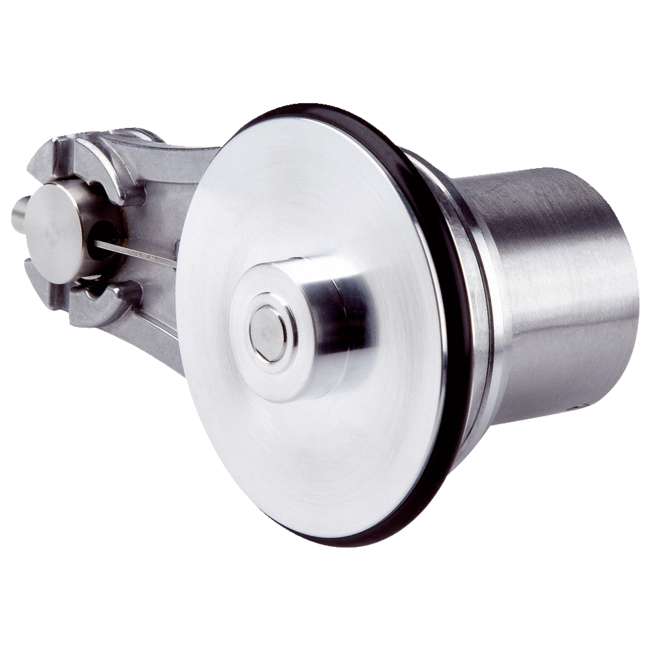

DBV50E-22CJA1000 SICK ⍾ 1084316 ⍾ DBV50E22CJA1000

Performance: Pulses per revolution: 1,000; Resolution in pulses/mm: 5; Measuring increment (resolution in mm/pulse): 0.2, ± 18° / pulses per revolution; Measuring step deviation: ± 18° / pulses per revolution; Error limits: ± 4 mm/m, subject to the measuring wheel (wheel + surface); Duty cycle: ≤ 0.5 ± 5 %; Initialization time: < 3 ms; Interfaces: Communication interface: Incremental; Communication Interface detail: TTL / RS-422; Number of signal channels: 6-channel; Electrical data: Operating power consumption (no load): 50 mA; Connection type: Cable, 8-wire, universal, 0.5 m 1); Power consumption max. without load: ≤ 0.5 W; Supply voltage: 7 V ... 30 V; Load current max.: 30 mA; Maximum output frequency: ≤ 300 kHz; Reference signal, number: 1; Reference signal, position: 90°, electric, logically gated with A and B; Reverse polarity protection: ✔; Short-circuit protection of the outputs: ✔ 2); MTTFd: mean time to dangerous failure: 600 years (EN ISO 13849-1) 3); Mechanical data: Measuring wheel circumference: 200 mm; Measuring wheel surface: O-ring NBR70 1); Spring arm design: 63.5 mm spring arm, encoder on mounting side (left), single wheel; Mass: + 300 g; Shaft: Stainless steel; Flange: Aluminum; Housing: Aluminum; Cable: PVC; Spring element: Spring steel, anti-corrosive; Measuring wheel, spring arm: Aluminum; Start up torque: 0.9 Ncm (at 20 °C); Operating torque: 0.6 Ncm (at 20 °C); Operating speed: 1,500 min⁻¹; Maximum operating speed: 3,000 min⁻¹ 2); Bearing lifetime: 2.0 x 10^9 revolutions; Maximum travel/deflection of spring arm: 14 mm At 14 N spring travel; Recommended pretension: 15 N At 10 mm deflection 3); Max. permissible working area for the spring (continuous operation): ± 3 mm; Recommended spring deflection: 2 mm ... 13 mm; Service life of spring element: > 1.4 million cycles 4); Mounting position relative to the measuring object: Preferably from above, from below possible 5); Ambient data: EMC: According to EN 61000-6-2 and EN 61000-6-3 (class A); Permissible relative humidity: 90 % (condensation of the optical scanning not permitted); Operating temperature range: –20 °C ... +85 °C (on request)–35 °C ... +95 °C; Storage temperature range: –40 °C ... +100 °C, without package; Classifications: ECl@ss 5.0: 27270501; ECl@ss 5.1.4: 27270501; ECl@ss 6.0: 27270590; ECl@ss 6.2: 27270590; ECl@ss 7.0: 27270501; ECl@ss 8.0: 27270501; ECl@ss 8.1: 27270501; ECl@ss 9.0: 27270501; ECl@ss 10.0: 27270790; ECl@ss 11.0: 27270707; ETIM 5.0: EC001486; ETIM 6.0: EC001486; ETIM 7.0: EC001486; UNSPSC 16.0901: 41112113
