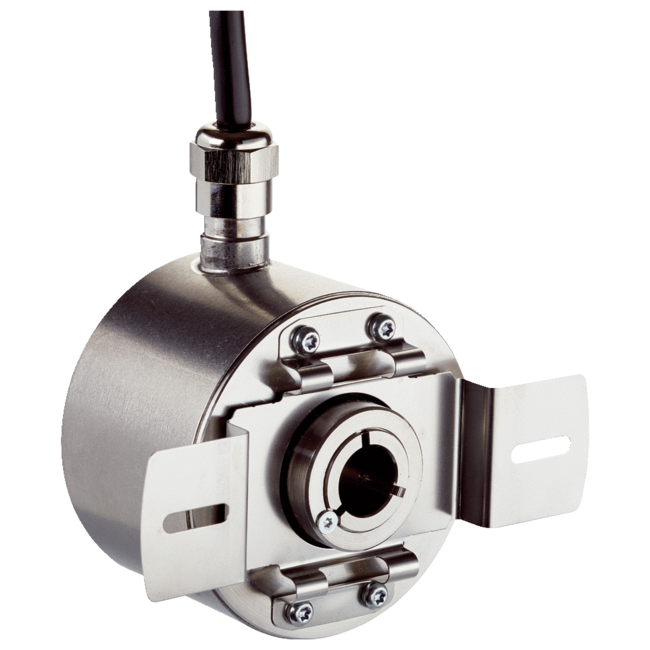

DBS60I-BEFM01024 SICK ⍾ 1089717 ⍾ DBS60IBEFM01024

Performance: Pulses per revolution: 1,024; Measuring step: 90° electric/pulses per revolution; Measuring step deviation: ± 18° / pulses per revolution; Error limits: Measuring step deviation x 3; Duty cycle: ≤ 0.5 ± 5 %; Interfaces: Communication interface: Incremental; Communication Interface detail: TTL / HTL 1); Number of signal channels: 6-channel; Initialization time: < 5 ms 2); Output frequency: ≤ 300 kHz 3); Load current: ≤ 30 mA, per channel; Power consumption: ≤ 0.5 W (without load); Electrical data: Connection type: Cable, 8-wire, radial, 5 m; Supply voltage: 4.5 ... 30 V; Reference signal, number: 1; Reference signal, position: 90°, electric, logically gated with A and B; Reverse polarity protection: ✔; Short-circuit protection of the outputs: ✔ 1); MTTFd: mean time to dangerous failure: 500 years (EN ISO 13849-1) 2); Mechanical data: Mechanical design: Blind hollow shaft; Shaft diameter: 12 mm; Flange type / stator coupling: 2-sided stator coupling, slot, screw hole circle 63–83 mm; Weight: 0.44 kg 1); Shaft material: Stainless steel V2A; Flange material: Stainless steel V2A; Housing material: Stainless steel V2A; Material, cable: PVC; Shaft sealing ring material: FKM80; Material, cable gland: Stainless steel V2A / Nickel-plated brass; Start up torque: 2.1 Ncm (+20 °C); Operating torque: 2 Ncm (+20 °C); Permissible shaft movement, axial static/dynamic: ± 0.5 mm / ± 0.2 mm; Permissible shaft movement, radial static/dynamic: ± 0.3 mm / ± 0.1 mm; Operating speed: ≤ 6,000 min⁻¹ 2); Moment of inertia of the rotor: 52 gcm²; Bearing lifetime: 3.6 x 109 revolutions; Angular acceleration: ≤ 500,000 rad/s²; Ambient data: EMC: According to EN 61000-6-2 and EN 61000-6-3; Enclosure rating: IP67, cable outlet (according to IEC 60529); Permissible relative humidity: 90 % (condensation of the optical scanning not permitted); Operating temperature range: –30 °C ... +100 °C, at maximum 3,000 pulses per revolution; Storage temperature range: –40 °C ... +100 °C, without package; Resistance to shocks: 100 g, 6 ms (according to EN 60068-2-27); Resistance to vibration: 10 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6); Classifications: ECl@ss 5.0: 27270501; ECl@ss 5.1.4: 27270501; ECl@ss 6.0: 27270590; ECl@ss 6.2: 27270590; ECl@ss 7.0: 27270501; ECl@ss 8.0: 27270501; ECl@ss 8.1: 27270501; ECl@ss 9.0: 27270501; ECl@ss 10.0: 27270501; ECl@ss 11.0: 27270501; ETIM 5.0: EC001486; ETIM 6.0: EC001486; ETIM 7.0: EC001486; UNSPSC 16.0901: 41112113
