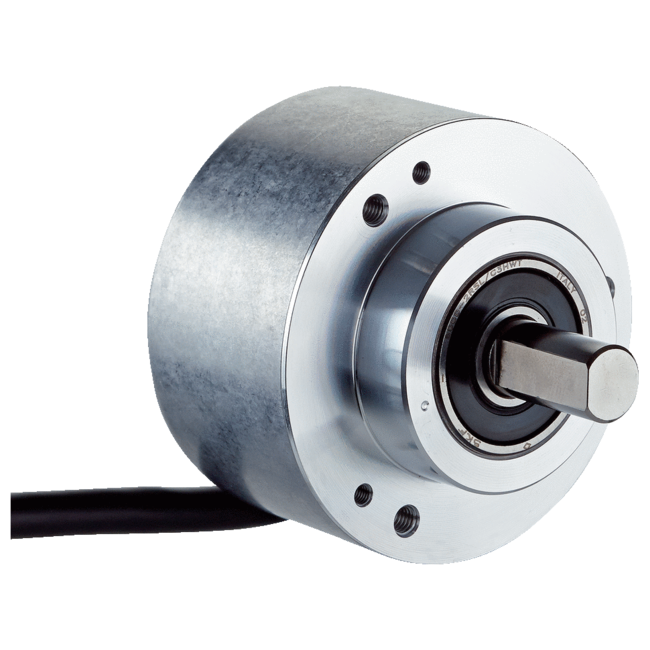

DBS60E-S4AL04096 SICK1103252DBS60ES4AL04096

Performance: Pulses per revolution: 4,096; Measuring step: ≤ 90° electric/pulses per revolution; Measuring step deviation: ± 36° / pulses per revolution; Error limits: Measuring step deviation x 3; Duty cycle: ≤ 0.5 ± 10 %; Interfaces: Communication interface: Incremental; Communication Interface detail: TTL / RS-422; Number of signal channels: 6-channel; Initialization time: < 5 ms 1); Output frequency: + 300 kHz 2); Load current: ≤ 30 mA, per channel; Operating current: ≤ 50 mA (without load); Electrical data: Connection type: Cable, 8-wire, universal, 3 m 1); Supply voltage: 4.5 ... 5.5 V; Reference signal, number: 1; Reference signal, position: 90°, electric, logically gated with A and B; Reverse polarity protection: ✔; Short-circuit protection of the outputs: ✔ 2); MTTFd: mean time to dangerous failure: 500 years (EN ISO 13849-1) 3); Mechanical data: Mechanical design: Solid shaft, face mount flange; Shaft diameter: 10 mm; Shaft length: 19 mm; Flange type / stator coupling: Flange with 3 x M3 and 3 x M4; Weight: + 0.3 kg 1); Shaft material: Stainless steel; Flange material: Aluminum; Housing material: Aluminum; Material, cable: PVC; Start up torque: + 1.2 Ncm (+20 °C); Operating torque: 1.1 Ncm (+20 °C); Permissible shaft loading radial/axial: 100 N (radial) 2)50 N (axial) 2); Operating speed: 6,000 min⁻¹ 3); Maximum operating speed: 9,000 min⁻¹ 4); Moment of inertia of the rotor: 33 gcm²; Bearing lifetime: 3.6 x 109 revolutions; Angular acceleration: ≤ 500,000 rad/s²; Ambient data: EMC: According to EN 61000-6-2 and EN 61000-6-3; Enclosure rating: IP67, housing side (according to IEC 60529)IP65, shaft side (according to IEC 60529); Permissible relative humidity: 90 % (condensation of the optical scanning not permitted); Operating temperature range: –20 °C ... +85 °C 1); Storage temperature range: –40 °C ... +100 °C, without package; Resistance to shocks: 250 g, 3 ms (according to EN 60068-2-27); Resistance to vibration: 30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6); Classifications: ECl@ss 5.0: 27270501; ECl@ss 5.1.4: 27270501; ECl@ss 6.0: 27270590; ECl@ss 6.2: 27270590; ECl@ss 7.0: 27270501; ECl@ss 8.0: 27270501; ECl@ss 8.1: 27270501; ECl@ss 9.0: 27270501; ECl@ss 10.0: 27270501; ECl@ss 11.0: 27270501; ETIM 5.0: EC001486; ETIM 6.0: EC001486; ETIM 7.0: EC001486; UNSPSC 16.0901: 41112113
