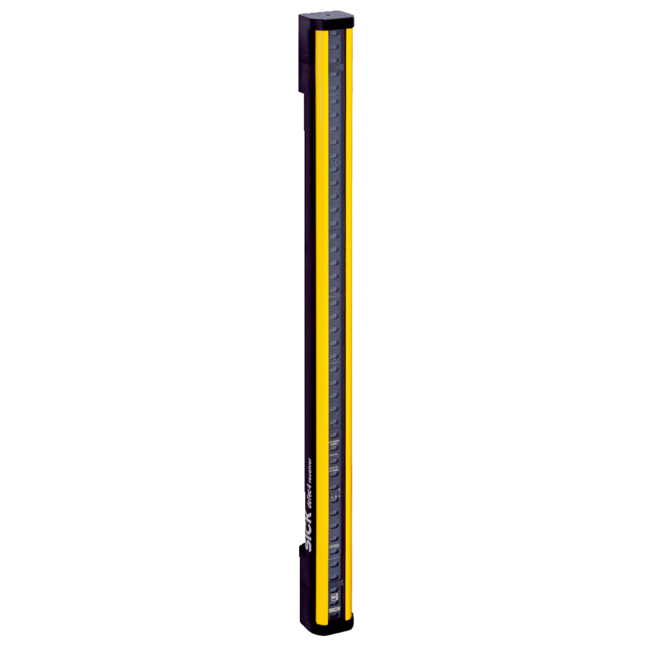

C4P-EA03010A001200 SICK1215702C4PEA03010A001200

Features: Application: Normal industrial environment; System part: Receiver; Resolution: 14 mm; Scanning range: 20 m; Protective field height: 300 mm; Response time: 11 ms (Uncoded)16 ms (code 1 or code 2); No blind zones: Yes; Synchronization: Optical synchronisation; Items supplied: ReceiverSystem plug 1200Test rod with diameter corresponding to the resolution of the safety light curtainSafety instructionMounting instructionsOperating instructions for download; Safety-related parameters: Type: Type 4 (IEC 61496-1); Safety integrity level: SIL3 (IEC 61508)SILCL3 (IEC 62061); Category: Category 4 (ISO 13849-1); Performance level: PL e (ISO 13849-1); PFHD (mean probability of a dangerous failure per hour)Single device9.6 x 10-9Cascade with one guest1.9 x 10-8Cascade with two guest devices2.9 x 10-8: PFHD (mean probability of a dangerous failure per hour); TM (mission time): 20 years (ISO 13849-1); Safe state in the event of a fault: At least one OSSD is in the OFF state.; Functions: Protective operation: ✔; Automatic calibration of the protective field width: ✔; Beam coding: ✔; Restart interlock: ✔; External device monitoring (EDM): ✔; Interfaces: System connection: Male connector M12, 8-pin; Configuration method: DIP switch on system plug; Display elements: LEDs; Application diagnostic output (ADO): ✔; Fieldbus, industrial networkIntegration via Flexi Soft safety controllerCANopen 1)DeviceNet™EtherCAT®EtherNet/IP™Modbus TCPPROFIBUS DPPROFINET: Fieldbus, industrial network; Electrical data: Protection class: III (IEC 61140); Supply voltage VS: 24 V DC (19.2 V ... 28.8 V); Ripple: ≤ 10 %; Power consumption typical: 3.43 W (DC); Output signal switching devices (OSSDs)Type of output2 PNP semiconductors, short-circuit protected, cross-circuit monitored 1)ON state, switching voltage HIGH24 V DC (VS – 2.25 V DC ... VS)OFF state, switching voltage LOW≤ 2 V DCCurrent-carrying capacity per OSSD≤ 500 mA: Output signal switching devices (OSSDs); Application diagnostic output (ADO)Type of outputPNP semiconductor, short-circuit protected 1)Output voltage HIGH (active)≥ Vs – 3 VOutput voltage LOW (deactivated)High resistanceOutput current HIGH (active)≤ 100 mA: Application diagnostic output (ADO); Mechanical data: Dimensions: See dimensional drawing; Housing material: Aluminum extruded profile; Ambient data: Enclosure rating: IP65 (IEC 60529)IP67 (IEC 60529); Ambient operating temperature: –30 °C ... +55 °C; Storage temperature: –30 °C ... +70 °C; Air humidity: 15 % ... 95 %, Non-condensing; Vibration resistance: IEC 60068-2-6; Shock resistance: 10 g, 16 ms (IEC 60068-2-27); Classifications: ECl@ss 5.0: 27272704; ECl@ss 5.1.4: 27272704; ECl@ss 6.0: 27272704; ECl@ss 6.2: 27272704; ECl@ss 7.0: 27272704; ECl@ss 8.0: 27272704; ECl@ss 8.1: 27272704; ECl@ss 9.0: 27272704; ECl@ss 10.0: 27272704; ECl@ss 11.0: 27272704; ETIM 5.0: EC002549; ETIM 6.0: EC002549; ETIM 7.0: EC002549; UNSPSC 16.0901: 46171620
