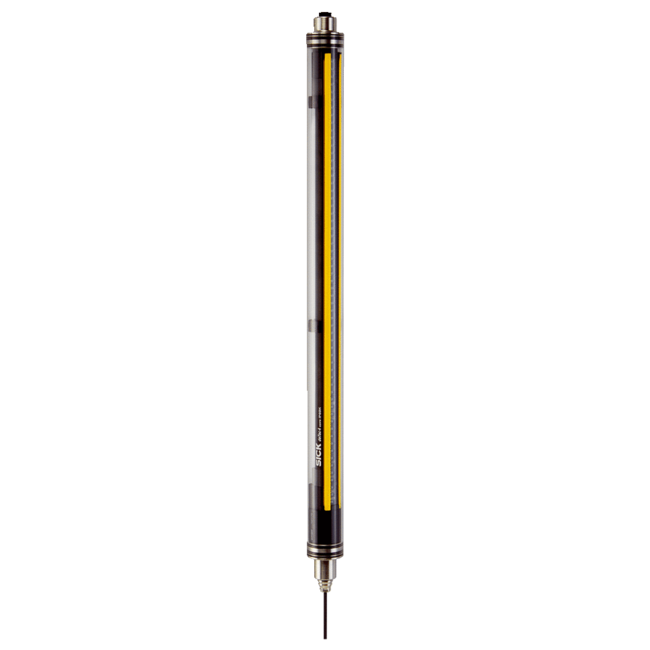

C4C-SB04510A10000 SICK1219532C4CSB04510A10000

Features: Application: Areas with high pressure cleaning (hygiene, food); System part: Sender; Compatible receiver: 1219533; Resolution: 14 mm; Scanning range: 8.5 m; Protective field height: 450 mm; No blind zones: Yes; Synchronization: Optical synchronisation; Items supplied: Sender in IP69K protective housing with connecting cable, 15 m; Safety-related parameters: Type: Type 4 (IEC 61496-1); Safety integrity level: SIL3 (IEC 61508)SILCL3 (IEC 62061); Category: Category 4 (ISO 13849-1); Performance level: PL e (ISO 13849-1); PFHD (mean probability of a dangerous failure per hour): 3.7 x 10-9; TM (mission time): 20 years (ISO 13849-1); Safe state in the event of a fault: At least one OSSD is in the OFF state.; Functions: Protective operation: ✔; Automatic calibration of the protective field width: ✔; Interfaces: System connection: Connecting cable, 15 m, flying lead, 5-wire; Display elements: LEDs; Fieldbus, industrial networkIntegration via Flexi Soft safety controllerCANopen 1)DeviceNet™EtherCAT®EtherNet/IP™Modbus TCPPROFIBUS DPPROFINET: Fieldbus, industrial network; Electrical data: Protection class: III (IEC 61140); Supply voltage VS: 24 V DC (19.2 V ... 28.8 V); Ripple: ≤ 10 %; Power consumption typical: 1.08 W (DC); Mechanical data: Dimensions: See dimensional drawing; MaterialProtective housingAcrylic glass (PMMA)End capsStainless steel 1.4404Cable glandsStainless steel 1.4404 including silicone sealCompensating element (membrane)PA 6: Material; Ambient data: Enclosure rating: IP65 (IEC 60529)IP66 (IEC 60529)IP67 (IEC 60529)IP69K (ISO 20653); Ambient operating temperature: –30 °C ... +55 °C; Storage temperature: –30 °C ... +70 °C; Air humidity: 15 % ... 95 %, Non-condensing; Vibration resistance: IEC 60068-2-6; Shock resistance: 10 g, 16 ms (IEC 60068-2-27); Other information: Wave length: 850 nm; Type of light: Near-infrared (NIR), invisible; Classifications: ECl@ss 5.0: 27272704; ECl@ss 5.1.4: 27272704; ECl@ss 6.0: 27272704; ECl@ss 6.2: 27272704; ECl@ss 7.0: 27272704; ECl@ss 8.0: 27272704; ECl@ss 8.1: 27272704; ECl@ss 9.0: 27272704; ECl@ss 10.0: 27272704; ECl@ss 11.0: 27272704; ETIM 5.0: EC002549; ETIM 6.0: EC002549; ETIM 7.0: EC002549; UNSPSC 16.0901: 46171620
