VSM56E BANNER ⍾ 13317
This product has been marked as discontinued. Please ask for availability or replacement.

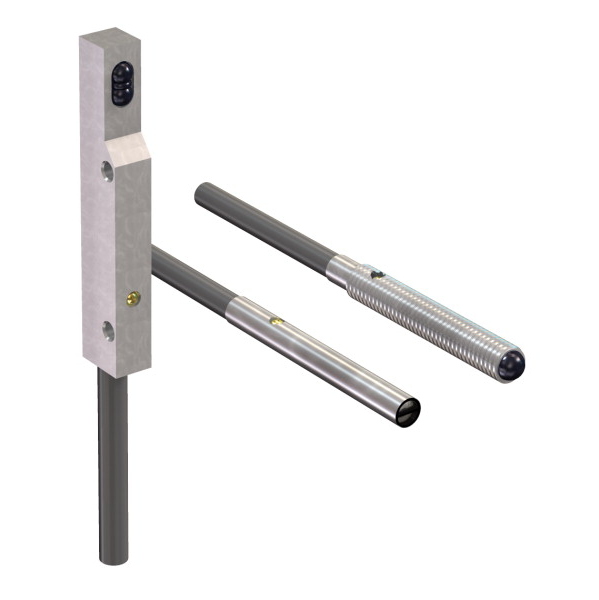

VSMQ Series Self-Contained Metal Sensor; VSM Series: 5 mm Threaded Barrel Emitterr Range: 250 mm; Input 10-30 V dc Output: No output 2 m (6.5 ft) Cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Barrel; Primary Housing Material : Stainless Steel; Max Sensing Distance (mm) : 250; Quick Disconnect Type : No QD; Max Op. Temp. (°C) : 55; Output response time (ms) : 2.5; Repeatability (µs) : 1000; Number of Pins : 2; Barrel Diameter (mm) : 5; Opposed Mode Emitter/Receiver : Emitter; Feature: Chemical Resistant : Yes
- Type
- VSMQ
- Lens material
- Sapphire
- Sensing beam
- Infrared LED
- Connection
- Cable
- Typical response time
- 20 ms
- Power supply type
- DC
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP67
 |
Banner - VSM Series Micro Sensors (Online Only) Size: 670 KB |
Download |
