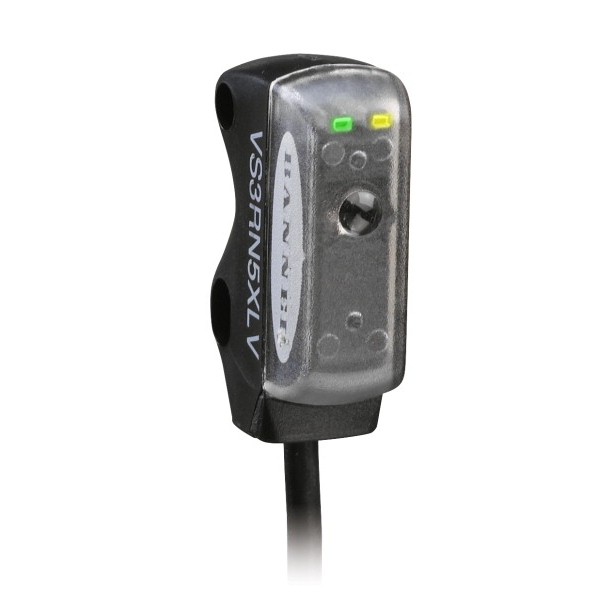

VS3RN5XLV BANNER ⍾ 63713

VS3 Series Miniature Sensor With Advanced Optics; VS3 Series: Non-Polarized Retro Range: 250 mm; Input: 10 to 30 V dc Output: NPN Dark Operate 2 m (6.5 ft.) Cable; Cable Length (m) : 2; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Non-Polarized; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 250; Outputs : NPN; Quick Disconnect Type : No QD; Operation : Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1; Repeatability (µs) : 160; Number of Pins : 3; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 80% @ 50°C

Type

VS3

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

150 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
