VS2AN5CV30Q BANNER ⍾ 63078

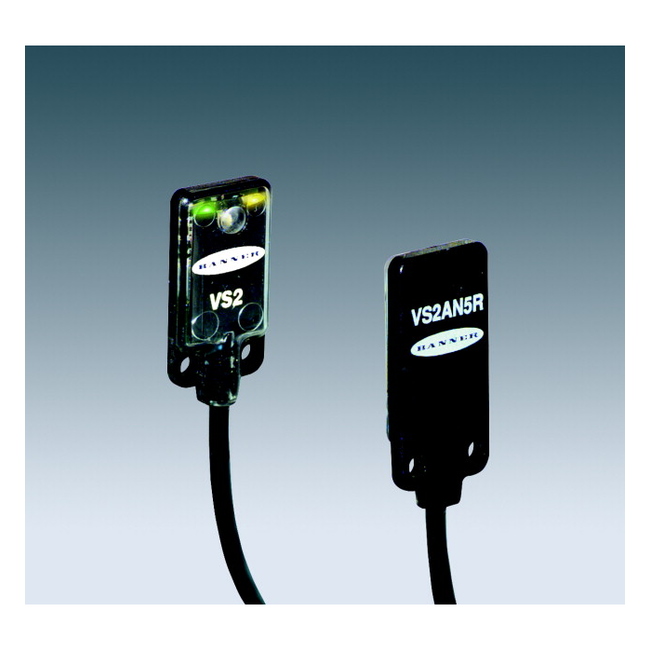

VS2 Series Ultra Thin Miniature Sensor; VS2 Series: Convergent Focal Point: 30 mm; Input 10 to 30 V dc Output: NPN Light Operate Pico M8 3-pin Pigtail QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Convergent; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 30; Outputs : NPN; Quick Disconnect Type : M8 (Pico); Operation : Light Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1 ON/0.5 OFF; Sensing Beam Wavelength : 660; Repeatability (µs) : 100; Number of Pins : 3; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 80% @ 50°C; Feature: Quick Disconnect : Yes

Type

VS2

Lens material

MABS

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
