VS25E BANNER ⍾ 57250

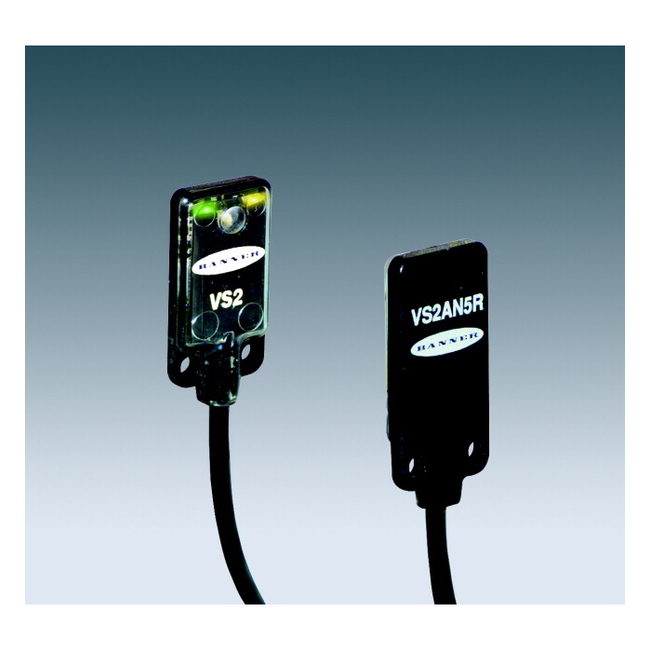

VS2 Series Ultra Thin Miniature Sensor; VS2 Series: Emitter Range: 1.2 m max; Input: 12-24V dc Not applicable - No outputs 2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 3000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 55; Output response time (ms) : 1 ON/0.5 OFF; Sensing Beam Wavelength : 940; Repeatability (µs) : 100; Number of Pins : 2; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 80% @ 50°C; Opposed Mode Emitter/Receiver : Emitter

Type

VS2

Lens material

MABS

Sensing beam

Infrared LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
