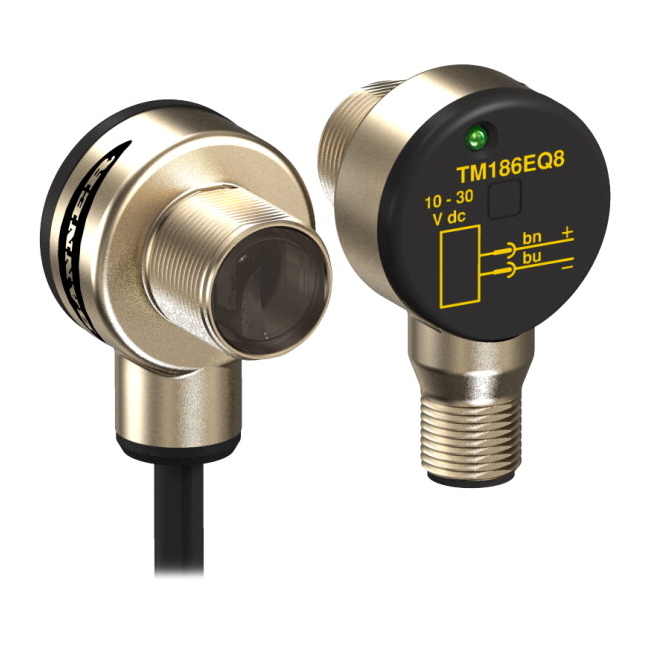

TM18VP6FF100 BANNER ⍾ 42041

TM18 Series Heavy-Duty Metal Right Angle Sensors; EZ BEAM TM18: Fixed Field Background Suppression Range: 100 mm; Input:10-30 V dc Outputs: PNP Complementary 2 m (6.5 ft.) Cable; Cable Length (m) : 2; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Barrel; Primary Housing Material : Zinc Die-Cast with Nickel-Plating; Input/Output : Discrete; Max Sensing Distance (mm) : 100; Quick Disconnect Type : No QD; Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 3 ON/1.5 OFF; Repeatability (µs) : 185; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Feature: Washdown Rated : Yes; Feature: Encapsulated : Yes

Type

TM18

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
