TM18RP6LPQ8 BANNER ⍾ 42003

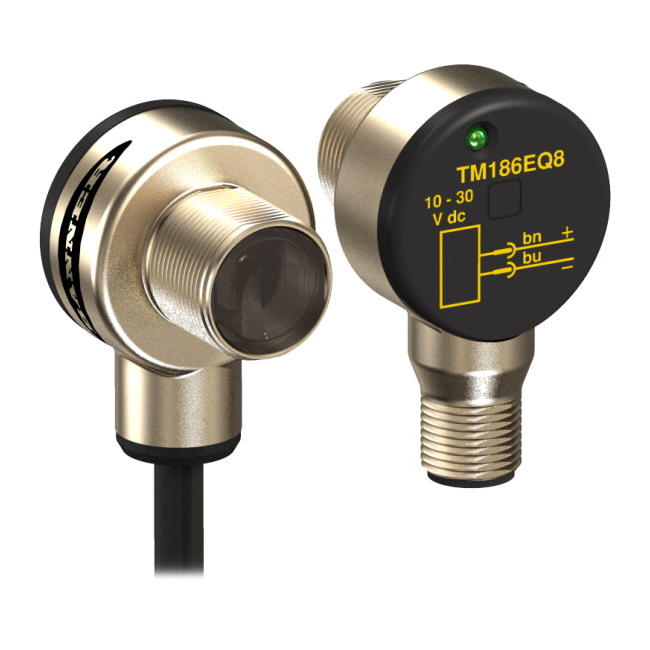

TM18 Series Heavy-Duty Metal Right Angle Sensors; EZ BEAM TM18: Polarized Retroreflective Range: 5.5m; Input:10-30V dc Outputs: PNP Dark Operate EURO-Style Quick-Disconnect Connector; Sensing Mode (General) : Retroreflective; Sensing Mode (Detailed) : Polarized; Housing Style : Barrel; Primary Housing Material : Zinc Die-Cast with Nickel-Plating; Input/Output : Discrete; Max Sensing Distance (mm) : 5500; Quick Disconnect Type : M12 (Euro); Operation : Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 3; Repeatability (µs) : 585; Number of Pins : 4; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Feature: Washdown Rated : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Type

TM18

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Integral QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67, IP69
