TM186E BANNER ⍾ 42006

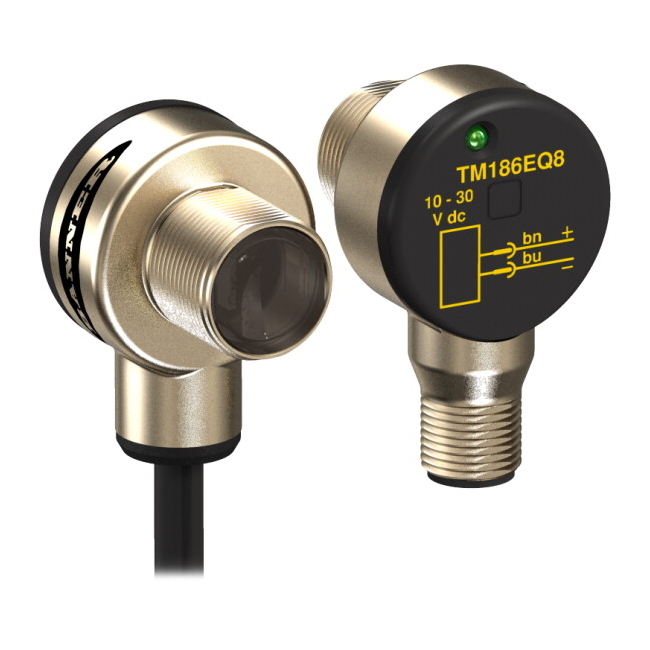

TM18 Series Heavy-Duty Metal Right Angle Sensors; EZ-BEAM TM18: Emitter Range: 20m; Input:10-30V dc Outputs: None 2 m (6.5 ft.) Cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Barrel; Primary Housing Material : Zinc Die-Cast with Nickel-Plating; Max Sensing Distance (mm) : 20000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 1.5 ON/0.75 OFF; Repeatability (µs) : 190; Number of Pins : 2; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 18; Opposed Mode Emitter/Receiver : Emitter; Feature: Washdown Rated : Yes; Feature: Encapsulated : Yes

Type

TM18

Lens material

Polycarbonate

Sensing beam

Visible Red LED

Connection

Cable

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
