T8RP6RQ BANNER ⍾ 66670

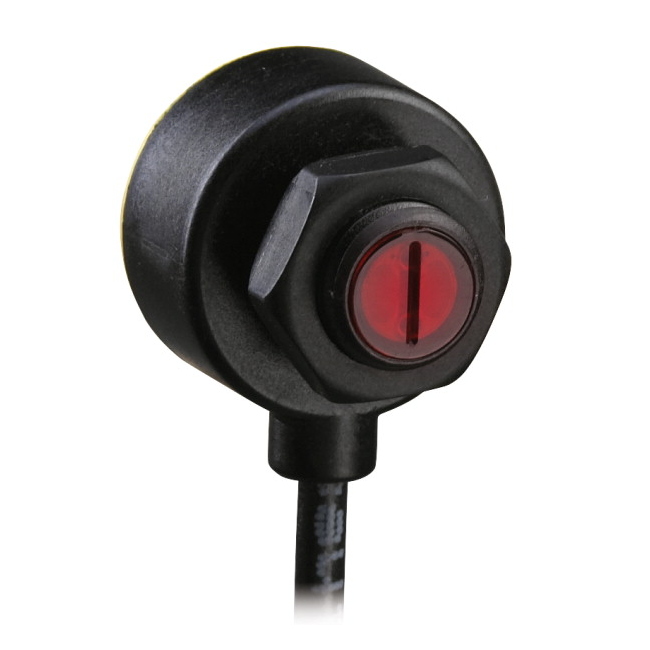

T8 Series Self-Contained Barrel-Mount Sensor; T8 Series: Opposed Mode Range: 2000 mm; Input: 10-30V dc Output: PNP Dark Operate Pico-Style Pigtail QD Connector; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 2000; Outputs : PNP; Quick Disconnect Type : M8 (Pico); Min Op. Temp. (°C) : -20; Operation : Dark Operate; Max Op. Temp. (°C) : 55; Output response time (ms) : 1 ON/0.5 OFF; Repeatability (µs) : 100; Number of Pins : 3; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 8; Opposed Mode Emitter/Receiver : Receiver; Feature: Quick Disconnect : Yes

Type

T8

Lens material

Acrylic

Sensing beam

Visible Red LED

Connection

Pigtail QD

Typical response time

100 ms

Power supply type

DC

Power supply

10-30 V dc

Indicator

LEDs

Degree of protection

IP67
